▍Xibang material number：XB-AC-F-T9BLZ

Product name: AC power socket Rated current: 2.5A 7A 10A 15A Rated voltage: 125V 250V AC Contact resistance: 30m Ω max

Insulation resistance: 100 M Ω min Voltage resistance: 2500V AC Insertion and extraction force: 1.36kg~6.8kgN Working temperature: -10 ℃± 70 ℃

Service life: 10000 times. Terminal material: brass silver plating. Welding method: welding wire/welding plate meets the standard: ROHS.UL.VDE

3D files and drawings

3D filesXB-AC-F-T9BLZ Specifications XB-1
3D filesXB-AC-F-T9BLZ Specifications XB-1
3D filesXB-AC-F-T9BLZ Specifications XB-1

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

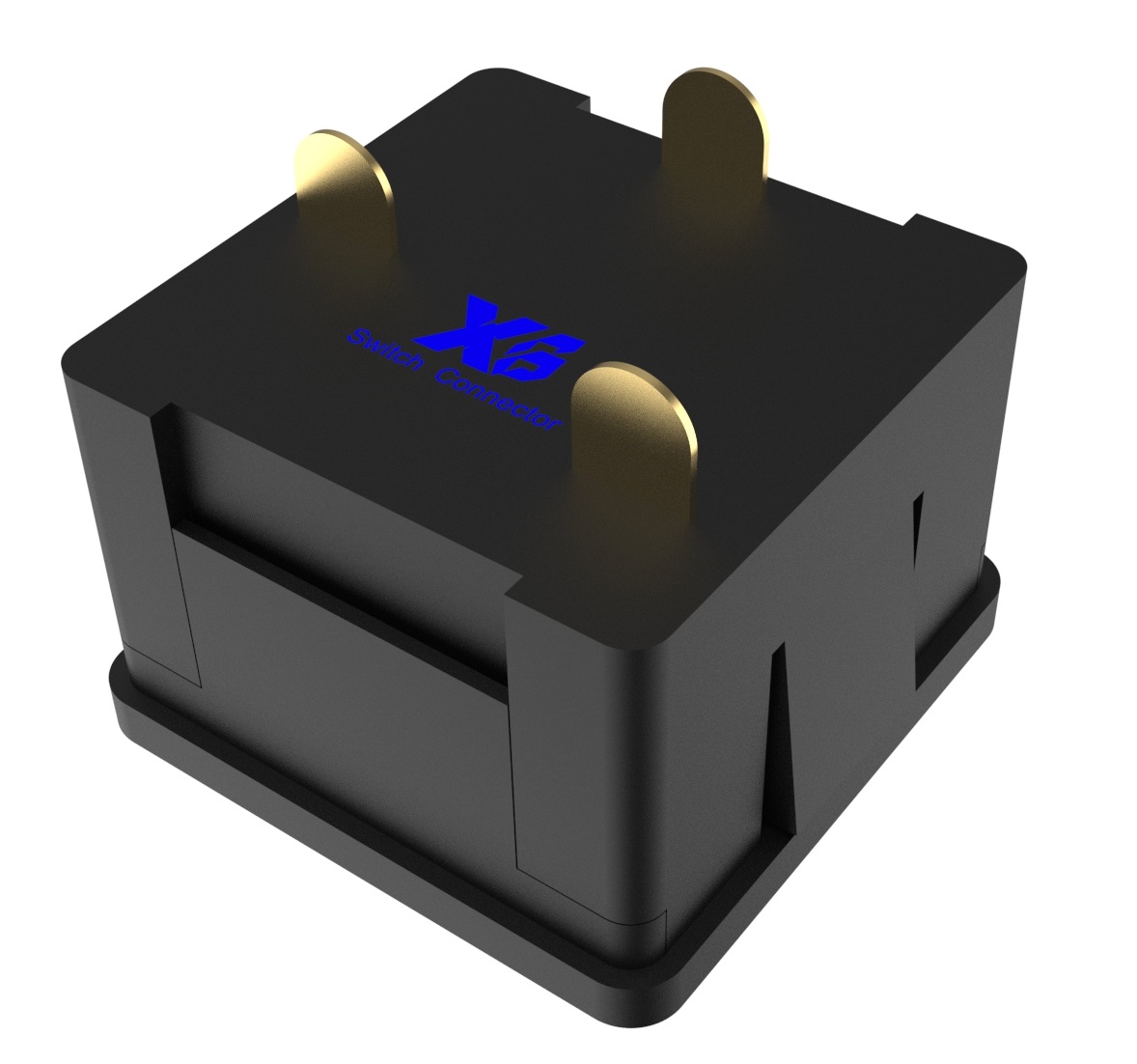

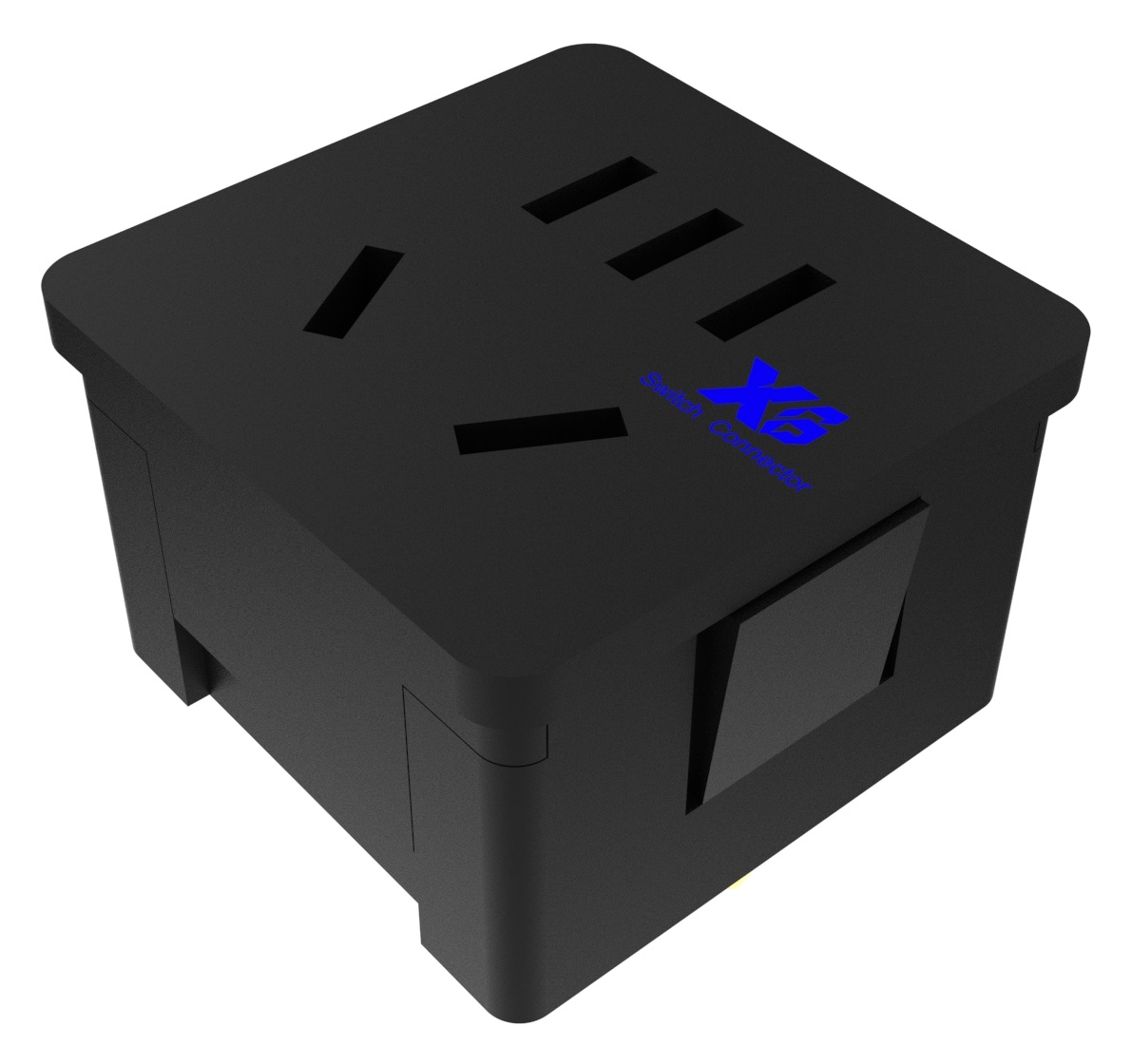

XB-AC-F-T9BLZ 3D Drawings		36 * 36 * 24mm power socket/T-shaped AC socket/8-shaped AC socket/new energy socket/high current socket/high current connector AC10A/adapter AC socket		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult
XB-AC-F-T9BLZ-X 3D Drawings		36 * 36 * 24mm power socket/T-shaped AC socket/8-shaped AC socket/new energy socket/high current socket/high current connector AC10A/adapter AC socket		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult
XB-AC-F-T9BLZ-X-X 3D Drawings		36 * 36 * 24mm power socket/T-shaped AC socket/8-shaped AC socket/new energy socket/high current socket/high current connector AC10A/adapter AC socket		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult

Product type features	1.AC socket	material quality
	2. Plastic parts	PA66
	3. Plug-in	Copper nickel plated
	4. Terminal	Copper plated tin

	1. Operating temperature range:	-10℃±70℃
	2. Rated value:	2.5A/7A/10A/15A 125V 250AC
	3. Insulation resistance:	100MΩ
	4. Voltage resistance:	2500V AC
	5. Contact resistance:	30MΩ
	6. Life:	10000 Times

structural property	Plug-in force:	13.6N~68N
	Terminal strength:	60N
	Salt Spray Test:	35±2°C 24/h

Environmental resistance	Cold resistance	-20±2℃ 96/h
	resistance to effect of heat	100±2℃ 96/h
	Moisture resistance	40 ± 2℃ relative humidity 90~95% 96 / h

Welding experiment:

solderability:	The top of the terminal was immersed into the solder tank of 255C soil 5C about 2mm deep for 3 x 0.5 seconds.	95% of the dipping part is eaten in tin
soldering resistance:	The top of the terminal into the solder tank with 255C soil 5C about 2mm depth, solder temperature and time are as follows:	There should be no obvious deformation and movement in the appearance
	Tin furnace type: 260 °± 5°C 3 ± for 1 second	Functional abnormalities
	Hand: 350 °±°10C 3 ± 0.5 seconds

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
