▍Xibang material number：XB-CAR-214

Product Name: Automotive Connector Rated Current: 3A AC/DC Rated Voltage: 250V AC Withstand Voltage: 1500V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω Operating force: 15N-70N Welding temperature: 260 ℃± 5 ℃

Plastic Base: PA66/UL94V-0 Cover Material: UL94V-0 Electroplating Process: Copper Gold Plating/Copper Silver Plating Service Life: 5000 Times

3D files and drawings

3D filesXB-CAR-214 Specifications QC1
3D filesXB-CAR-214 Specifications QC1
3D filesXB-CAR-214 Specifications QC1

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

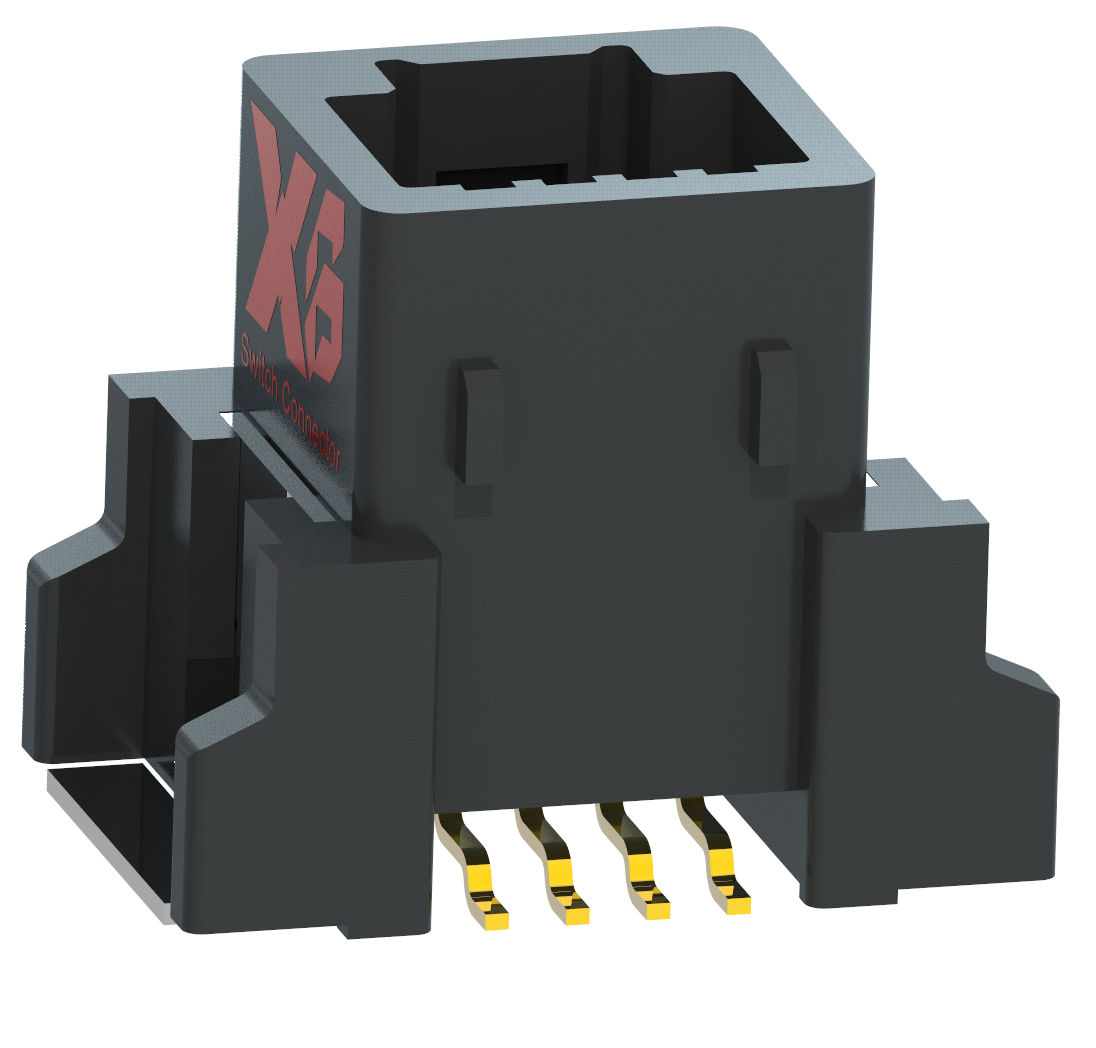

XB-CAR-214 3D Drawings		23.8 * 16.2 * 19.5mm car connector/car connector/wire harness connector/wire to wire connector/wire to board connector/cable connector/wire end connector/board end connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult
XB-CAR-214-X 3D Drawings		23.8 * 16.2 * 19.5mm car connector/car connector/wire harness connector/wire to wire connector/wire to board connector/cable connector/wire end connector/board end connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult
XB-CAR-214-X-X 3D Drawings		23.8 * 16.2 * 19.5mm car connector/car connector/wire harness connector/wire to wire connector/wire to board connector/cable connector/wire end connector/board end connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult

product material	1. Automotive connector	material
	2. Shell	PA66/UL94V-0
	3.Lid	UL94V-0
	4.Terminal	Brass/Silver Plated/Gold Plated

	Operating temperature range	-40°C±105°C
	Maximum rating (resistive load)	3A 250V AC
	Minimum rating (resistive load)	1A 250V AC

electrical properties	withstand voltage	1000V AC
	Insulation resistance	100mΩmax
	Operating force	15N-70N
	Contact resistance	30mΩmax

Durability	no load life	5000 times
	load life	5000 times

Environmental resistance	Cold resistance	-40±2℃/24h
	Heat resistance	125±2℃/24h
	Humidity resistance	30±2℃, 90 to 95%RH for 96h

Solder resistance	Welding time: 10±1S	Can withstand the influence of welding heat test without damage
	Temperature: 260°±5°C

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
