▍Xibang material number：17W211S

Product Name: D-SUB Connector Rated Current: 3A Rated Voltage: 250V AC Withstand Voltage: 1000V AC

Contact resistance: 10M Ω Insulation resistance: 100M Ω Welding method: wire/plate Working temperature: -55 ℃± 125 ℃

Operating force: 17Kgf Plastic material: UL 94V-0 Service life: 5000 times Product compliance: ROHS

3D files and drawings

3D filesXB-17W2-PPHXXX20B00 Specifications SUB
3D filesXB-17W2-PPHXXX20C00 Specifications SUB
3D filesXB-17W2-PPHXXX20I00 Specifications SUB
3D filesXB-17W2-PPHXXX20I10 Specifications SUB
3D filesXB-17W2-PPHXXX20000 Specifications SUB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

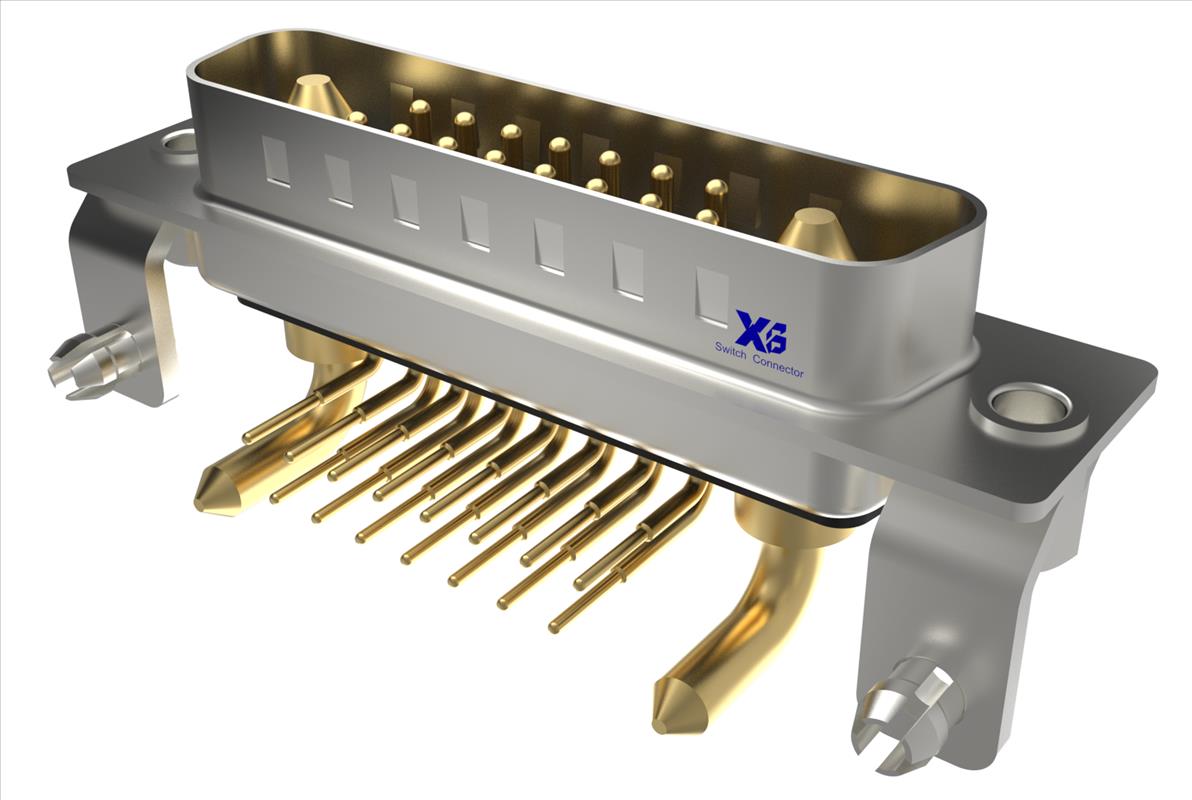

XB-17W2-PPHXXX20B00 3D Drawings		D-SUB female socket/D-Sub plug housing/combination D-SUB connector/D-SUB male socket/D-SUB socket connector/D-Sub plug connector 17PIN		Normal	1-2 weeks	5.204	230 pieces/disc	690	10000	Compatible Xibang	Consult
XB-17W2-PPHXXX20C00 3D Drawings		D-SUB female socket/D-Sub plug housing/combination D-SUB connector/D-SUB male socket/D-SUB socket connector/D-Sub plug connector 17PIN		Normal	1-2 weeks	5.204	230 pieces/disc	690	10000	Compatible Xibang	Consult
XB-17W2-PPHXXX20I00 3D Drawings		D-SUB female socket/D-Sub plug housing/combination D-SUB connector/D-SUB male socket/D-SUB socket connector/D-Sub plug connector 17PIN		Normal	1-2 weeks	5.204	230 pieces/disc	690	10000	Compatible Xibang	Consult
XB-17W2-PPHXXX20I10 3D Drawings		D-SUB female socket/D-Sub plug housing/combination D-SUB connector/D-SUB male socket/D-SUB socket connector/D-Sub plug connector 17PIN		Normal	1-2 weeks	5.204	230 pieces/disc	690	10000	Compatible Xibang	Consult
XB-17W2-PPHXXX20000 3D Drawings		D-SUB female socket/D-Sub plug housing/combination D-SUB connector/D-SUB male socket/D-SUB socket connector/D-Sub plug connector 17PIN		Normal	1-2 weeks	5.204	230 pieces/disc	690	10000	Compatible Xibang	Consult

Product Material	1. D-SUB connector	Material
	2. Shell	UL94V-0
	3. Terminals	Phosphor copper silver plated/Phosphor copper gold plated
	3. Plastic shell	Phosphor Bronze

Product Type Features	Rated current	3A
	Rated voltage	250V AC
	Operating temperature range	-55°C±125°C
	Contact resistance	30mΩ
	Insulation resistance	10mΩ
	Withstand voltage	1000V AC

Environmental resistance	Cold resistance	-25±2℃ 96/h
	Heat resistance	105±2℃ 96/h
	Moisture resistance	35±3℃Relative humidity 90~95% 96/h

Mechanical accessories	Installation	Wire/Board Welding
	Connector Mounting Type:	Board Installation

Solderability test	Immerse the terminal pins in the flux for 5 seconds, then immerse the terminal pins in a 230±5℃ tin furnace for 5±0.5 seconds	The tin attached area should exceed 95% of the immersed surface area

Solder heat resistance	The terminals should be tested for tin resistance and solder heat resistance under the following conditions and then tested for contact impedance.
	Based on: EIA-364-56A	No cracks, scratches or breaks
	Solderability temperature: 245°±5C
	Time: 3s+/-0.5s
Reflow and wave soldering experiments	Wave Soldering	The recommended soldering temperature for DIP type is 260°C (500°F) for a maximum of 5 seconds
	Hand welding	Use a 30W soldering iron to control the temperature at 380°C and solder for about 3 seconds
	Reflow	The maximum temperature of the SMT reflow oven is 260°C. When the temperature is 260°C, the maximum time does not exceed 10 seconds.

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
