▍Xibang material number：XB-DC-005-5A-3.0

方向

水平

安装方式

通孔

外孔

6.5mm

中心引脚

3.0mm

离安装面高度

11mm

外形尺寸

W14.2XD9.0XH11mm

额定电流

5A

额定电压

24V

屏蔽

否

产品证书

UL/CUL:E523734

3D files and drawings

3D filesXB-DC-005-5A-3.0 Specifications XB-DC-005-5A-3.0-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

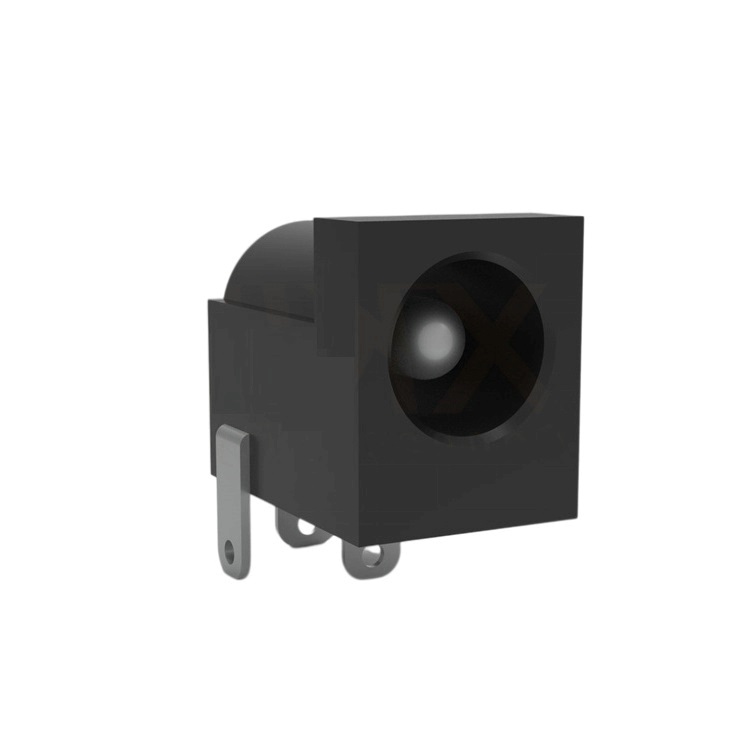

XB-DC-005-5A-3.0 3D Drawings		DC connector pin W14.2xD9.0xH11, inner core 3.0,5A 24V	4140	normal	2-3 weeks	1.992	350 pieces/disc	5000	10000	Compatible Xibang	Consult

产品材质	Center pin:	Brass silver
	Terminal 1:	Brass silver
	Terminal 2:	Phosphor Bronze silver
	Terminal 3:	Brass silver
	Plastic:	Pbt

环境条件	Temperature range:	-20 °C/+70 °C

	Mating cycles:	≥ 5000
	Insertion force:	≤ 30 N *1
	Withdrawal force:	3–30 N *2

电气数据	Contact resistance:	≤ 30 mΩ
	Rated current:	5 A
	Rated voltage:	24 V DC
	Rated impulse voltage:	250 V/60 s

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
