▍Xibang material number：XB-DC-C033D-5.5A-2.0

Product type: DC socket Rated current: 6A 10A Rated voltage: 12V 30V DC

Contact resistance: 30m Ω max Voltage resistance: 500 V AC MIN Insulation resistance: 100M Ω min

Life test: 5000 fog tests: 24 hours Installation method: Horizontal plug-in

Insertion and extraction force: 2-30 N Extraction force: 2-30 N Product certification: ROHS

3D files and drawings

3D filesXB-DC-C033D-5.5A-2.0 Specifications XB-DC-C033D-5.5A-2.0-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

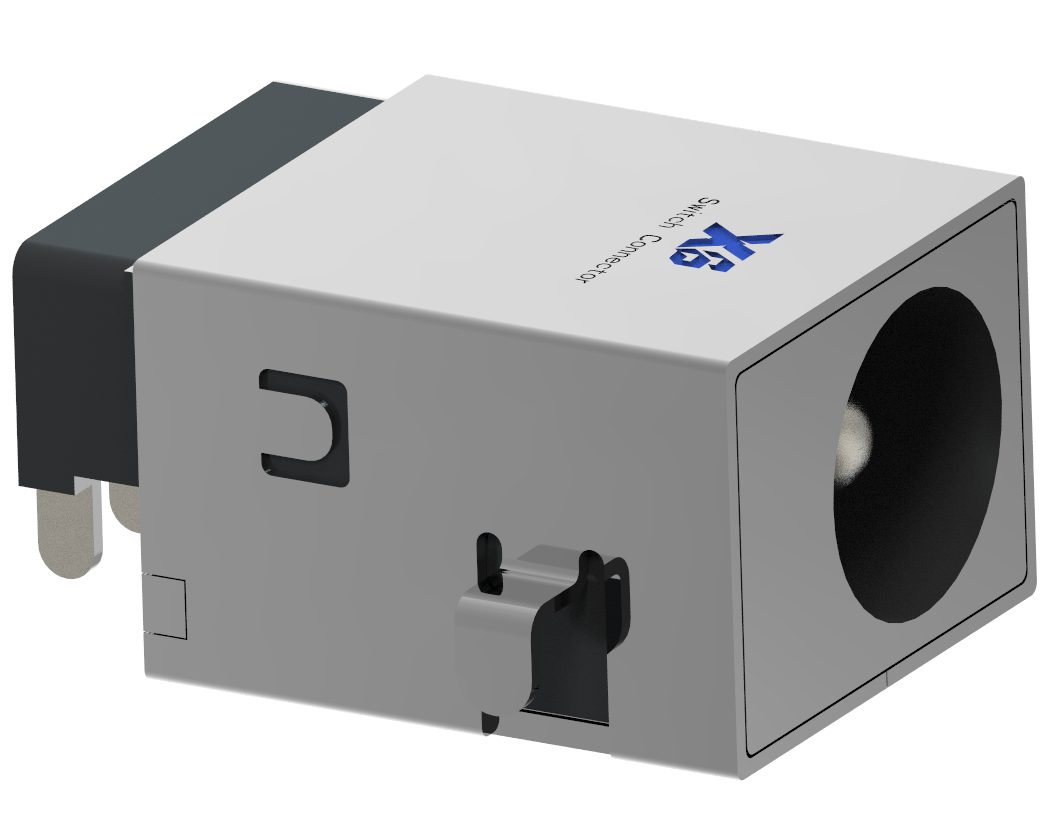

XB-DC-C033D-5.5A-2.0 3D Drawings		DC socket sinking plate 5A high-power DC socket 5.5 * 2.0mm DC socket connector high current 10A		Normal	3-7 days	0.6	500	5000		Compatible Xibang	Consult

产品材质	Center pin:	Brass tin
	Coat:	Sus
	Terminal 2:	Phosphor Bronze tin
	Terminal 3:	Brass tin
	Terminal 4:	Brass tin
	Terminal 5:	Brass tin
	Plastic:	Pa9t

环境条件	Temperature range:	-20 °C/+70 °C

	Mating cycles:	≥ 5000
	Insertion force:	≤ 30 N *1
	Withdrawal force:	3–30 N *2

电气数据	Contact resistance:	≤ 30 mΩ
	Rated current:	5.5 A
	Rated voltage:	24 V DC
	Rated impulse voltage:	250 V/60 s

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
