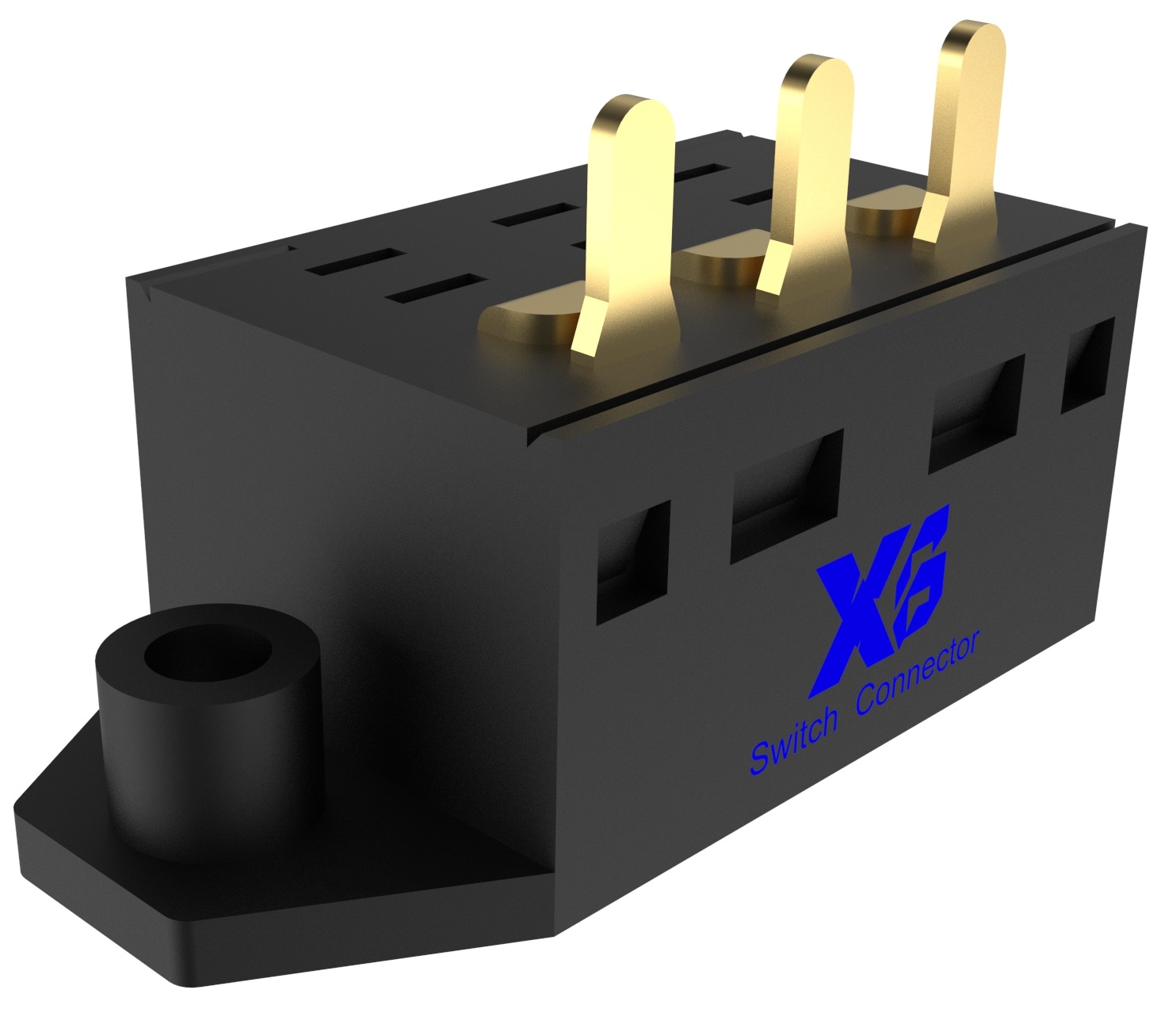

▍Xibang material number：XB-T26-K2011-3P-E

Product name: toggle switch Rated current: 3A 6A Rated voltage: 125V 250V Withstand voltage: 500V

Contact resistance: 30MΩ Service life: 10,000 times Operating strength: 450gf±150gf Handle length: 2-10mm

Base/handle: PA10T/POM Contact piece: brass Pin material: yellow silver-plated/gold-plated Installation method: welding

3D files and drawings

3D filesXB-T26-K2011-3P-E Specifications XB
3D filesXB-T26-K2011-3P-E Specifications XB
3D filesXB-T26-K2011-3P-E Specifications XB
3D filesXB-T26-K2011-3P-E Specifications XB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-T26-K2011-3P-E 3D Drawings		26 * 10.5 * 8.4mm side toggle high current 2-speed sliding switch 1P2T/horizontal high current 2-speed code switch 1P2T/side handle 2-speed toggle switch 3-pin/90 degree high current 2-speed toggle switch 3-pin/high-power 2-speed sliding switch horizontal/horizontal handle 2-speed toggle switch	Side shift toggle	Normal	4-7 days	0.3g	500	2000	10000	Compatible Xibang	Consult
XB-T26-K2011-3P-E-X 3D Drawings		26 * 10.5 * 8.4mm side toggle high current 2-speed sliding switch 1P2T/horizontal high current 2-speed code switch 1P2T/side handle 2-speed toggle switch 3-pin/90 degree high current 2-speed toggle switch 3-pin/high-power 2-speed sliding switch horizontal/horizontal handle 2-speed toggle switch	Side shift toggle	Normal	4-7 days	0.3g	500	2000	10000	Compatible Xibang	Consult
XB-T26-K2011-3P-E-X-X 3D Drawings		26 * 10.5 * 8.4mm side toggle high current 2-speed sliding switch 1P2T/horizontal high current 2-speed code switch 1P2T/side handle 2-speed toggle switch 3-pin/90 degree high current 2-speed toggle switch 3-pin/high-power 2-speed sliding switch horizontal/horizontal handle 2-speed toggle switch	Side shift toggle	Normal	4-7 days	0.3g	500	2000	10000	Compatible Xibang	Consult
XB-T26-K2011-3P-E-X-X-X 3D Drawings		26 * 10.5 * 8.4mm side toggle high current 2-speed sliding switch 1P2T/horizontal high current 2-speed code switch 1P2T/side handle 2-speed toggle switch 3-pin/90 degree high current 2-speed toggle switch 3-pin/high-power 2-speed sliding switch horizontal/horizontal handle 2-speed toggle switch	Side shift toggle	Normal	4-7 days	0.3g	500	2000	10000	Compatible Xibang	Consult

product material	1. Toggle switch	Material
	2.Plastic	PA10T/PA66
	3.Contact sheet	brass
	4.Button	POM
	5. Pin	Brass silver plated/brass gold plated
	6.Spring	SUS304

Electrical properties	Operating temperature range	-10℃±60℃
	Maximum rating (resistive load)	6A 125V AC
	Minimum rating (resistive load)	3A 250V AC
	Operating force	450gf±150gf
	Withstand voltage	500VAC
	Insulation resistance	100MΩ
	Contact resistance (initial/after life)	30MΩ

Durability	No load life	10000 times
	Load life (maximum rated load)	10000 times

Environmental resistance	Cold resistance	-40±3°C/96h
	Heat resistance	70±2°C/48h
	Moisture resistance	40±2°90 to 95% relative humidity 96/h

Temperature alternating test
For example, in the environment shown in the icon, after 5 cycles, place it in a normal environment and test after 30 minutes.		No signs of damage to mechanical or electrical performance

Solderability test		More than 95% of the surface of the immersed part will be covered with tin
	The top of the terminal is immersed in the solder pool 2mm deep, the temperature is 240±5°C, and the time is 3 seconds. Lead-free tin test: composition: tin 96.5%, copper 3%, silver 0.5%
Solder resistance test	When hand welding, the temperature needs to be controlled at 360±10℃ and the time is 3±0.5 seconds, but abnormal pressure cannot be applied to the terminals. Lead-free tin test: Ingredients: 96.5% tin, 3% copper, 0.5% silver	The body has no deformation and can meet the mechanical and electrical performance

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
