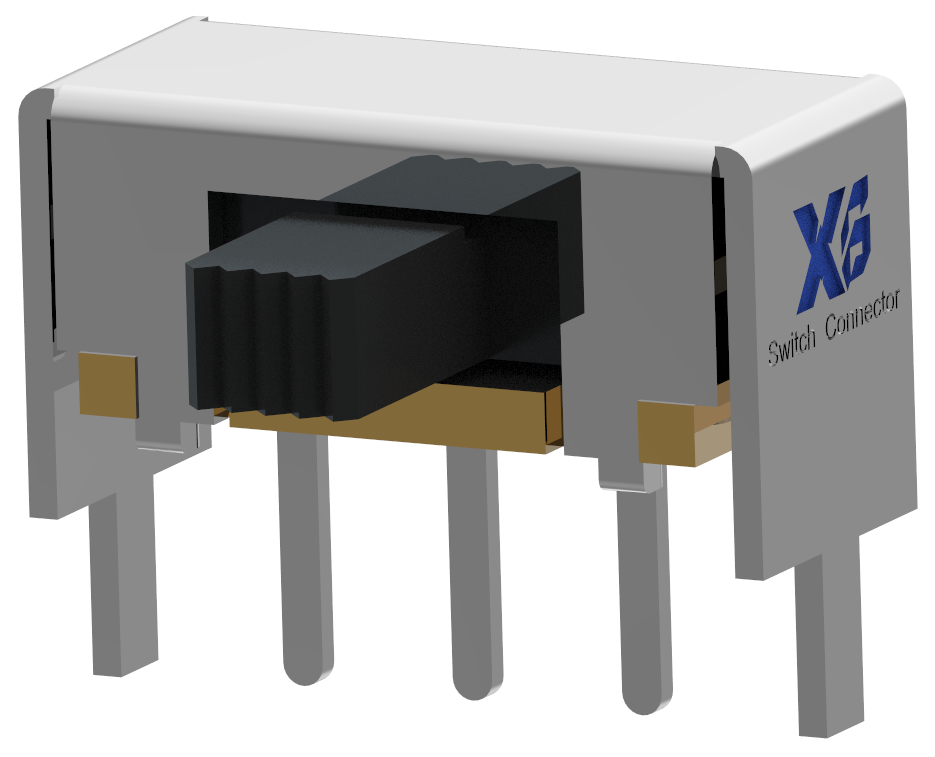

▍Xibang material number：XB-EN-12F20

Product name: toggle switch rated current: 0.3A rated voltage: 50V DC contact resistance: 30m Ω max

Withstand voltage: 500 V DC MIN circuit: 1P2T Service life: 10000 times Operating force: 250gf ± 100gf

Number of switch gears: 2nd gear Handle length: 2-12mm Stroke: 3mm Product certificate: ROHS

3D files and drawings

3D filesXB-SK-12F20 Specifications XB-SK-12F20-
3D filesXB-SK-12F20 Specifications XB-SK-12F20-
3D filesXB-SK-12F20 Specifications XB-SK-12F20-
3D filesXB-SK-12F20 Specifications XB-SK-12F20-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-EN-12F20 3D Drawings		2-position toggle switch/2-position toggle switch/horizontal plug-in/sliding switch/dial switch/fluctuation switch/1P2T side toggle switch		Normal	4-7 days	0.000	500	2000	10000	Compatible Xibang	Consult
XB-EN-12F20 3D Drawings		2-position toggle switch/2-position toggle switch/horizontal plug-in/sliding switch/dial switch/fluctuation switch/1P2T side toggle switch		Normal	4-7 days	0.000	500	2000	10000	Compatible Xibang	Consult
XB-EN-12F20 3D Drawings		2-position toggle switch/2-position toggle switch/horizontal plug-in/sliding switch/dial switch/fluctuation switch/1P2T side toggle switch		Normal	4-7 days	0.000	500	2000	10000	Compatible Xibang	Consult
XB-EN-12F20 3D Drawings		2-position toggle switch/2-position toggle switch/horizontal plug-in/sliding switch/dial switch/fluctuation switch/1P2T side toggle switch		Normal	4-7 days	0.000	500	2000	10000	Compatible Xibang	Consult

Product material	1.Slide switch	PA66 POM
	2.cover	SUS Tin plated
	3.Base	PA66 POM
	4. Contact spring	Beryllium copper
	5.Terminal	Brass（0.30t） ag Plated

	Operating temperature range	-40℃ to 85℃
	Maximum rating (resistive load)	0.3A 4V DC
	Minimum rating (resistive load)	50A 3V DC

Electrical performance	Withstand voltage	500V AC for 1 minute
	insulation resistance	100MΩ min. 500V DC
	Contact resistance (at initial stage/after service life)	70mΩ max./130mΩ max.

Durability	No load life	10,000 cycles 100mΩ max.
	Load life (maximum rated load)	10,000 cycles 130mΩ max.

Environmental resistance	Cold resistance	-20℃ 500h
	Heat resistance	85℃ 500h
	Moisture resistance	60℃, 90 to 95%RH 500h

Welding conditions
During immersion welding	Preheat temperature	100℃
	Preheating temperature time	60s max.
	welding temperature	260±5℃
	Immersion time of welding	3±1s

During manual welding	welding temperature	350±10℃
	Welding time	4s max.

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
