▍Xibang material number：XB-CXF-H43-012

Product type: Magnetic USB connector Rated current: 1A 3A Rated voltage: 12V 24V DC Contact resistance: 30mΩmax

Withstand voltage: 100V AC Insulation resistance: 100 MΩ min Life test: 5000 times Salt spray test: 24 hours

Insertion force: 2-30 N Extraction force: 2-30 N Working temperature: -20°C±85°C Product certification: ROHS

3D files and drawings

3D filesXB-CXF-H43-012 Specifications USB
3D filesXB-CXF-H43-012 Specifications USB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

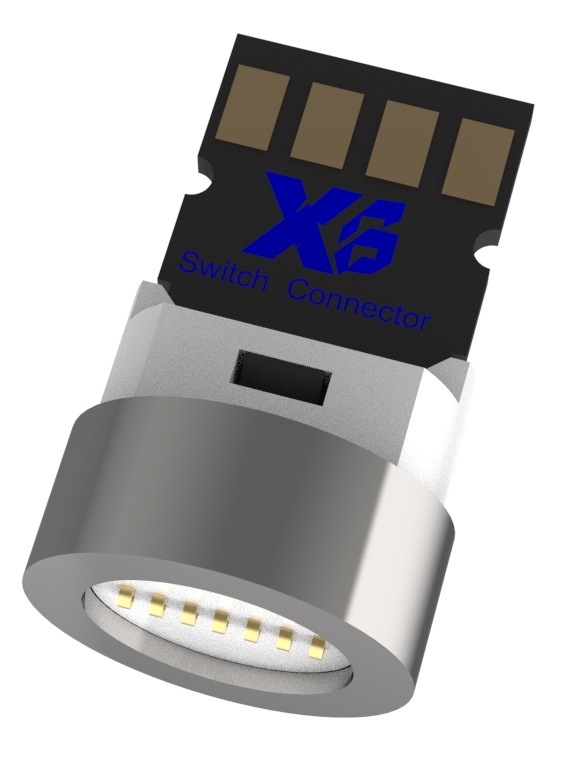

XB-CXF-H43-012 3D Drawings		8.5 * 14.0mm magnetic suction USB connector/charging magnetic suction USB male head/magnetic suction USB male seat/mobile phone magnetic suction USB plug/magnetic suction connector USB		Normal	4~7	0.35	1000	20000	100000	Compatible Xibang	Consult
XB-CXF-H43-012-X 3D Drawings		8.5 * 14.0mm magnetic suction USB connector/charging magnetic suction USB male head/magnetic suction USB male seat/mobile phone magnetic suction USB plug/magnetic suction connector USB		Normal	4~7	0.35	1000	20000	100000	Compatible Xibang	Consult

Product material	1. Magnetic USB connector	material quality
	2. The lid	yellow metal
	3. Shrapnel	yellow metal
	4. The base	PBT/PA66/POM
	5. Touch	Brass / silver plated / gold plated
	6. Terminal	Brass / silver plated / gold plated

	Use the temperature range	-30°C±85°C
	Maximum rating (resistance load)	3A 30V
	Minimum rating (resistance load)	1A 12V

Electric performance	withstand voltage	500V AC
	insulation resistance	100mΩ max

lasting quality	No load life	5000 Times
	load life	5000 Times

Environmental resistance	Cold resistance	-40±3℃ for 96h
	resistance to effect of heat	80±2℃ for 96h
	Moisture resistance	40±2℃, 90 to 95%RH for 96h

1. Temperature change experiment	According to the figure below, after 5 cycles, the test was maintained under normal conditions for 30 minutes.
3. Temperature distribution
3. Temperature distribution
Hand welding	welding temperature	Maximum of 260°C
	preheating time	Maximum 60 seconds
	Continuous impregnation time	Maximum 3 seconds
	Welding times	1

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
