▍Xibang material number：XB-RF-7053A-01G

Product type: RF connector Rated current: 1.5A Rated voltage: 60V Contact resistance: 30m Ω max

Voltage resistance: 200V Insulation resistance: 100 M Ω Lifetime test: 500 salt spray tests: 24 hours

Installation method: Welding insertion and extraction force: 2-17.5N Operating temperature: -40 ℃± 105 ℃ Product certification: ROHS

3D files and drawings

3D filesXB-RF-7053A-01G Specifications BNC
3D filesXB-RF-7053A-01G Specifications BNC

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

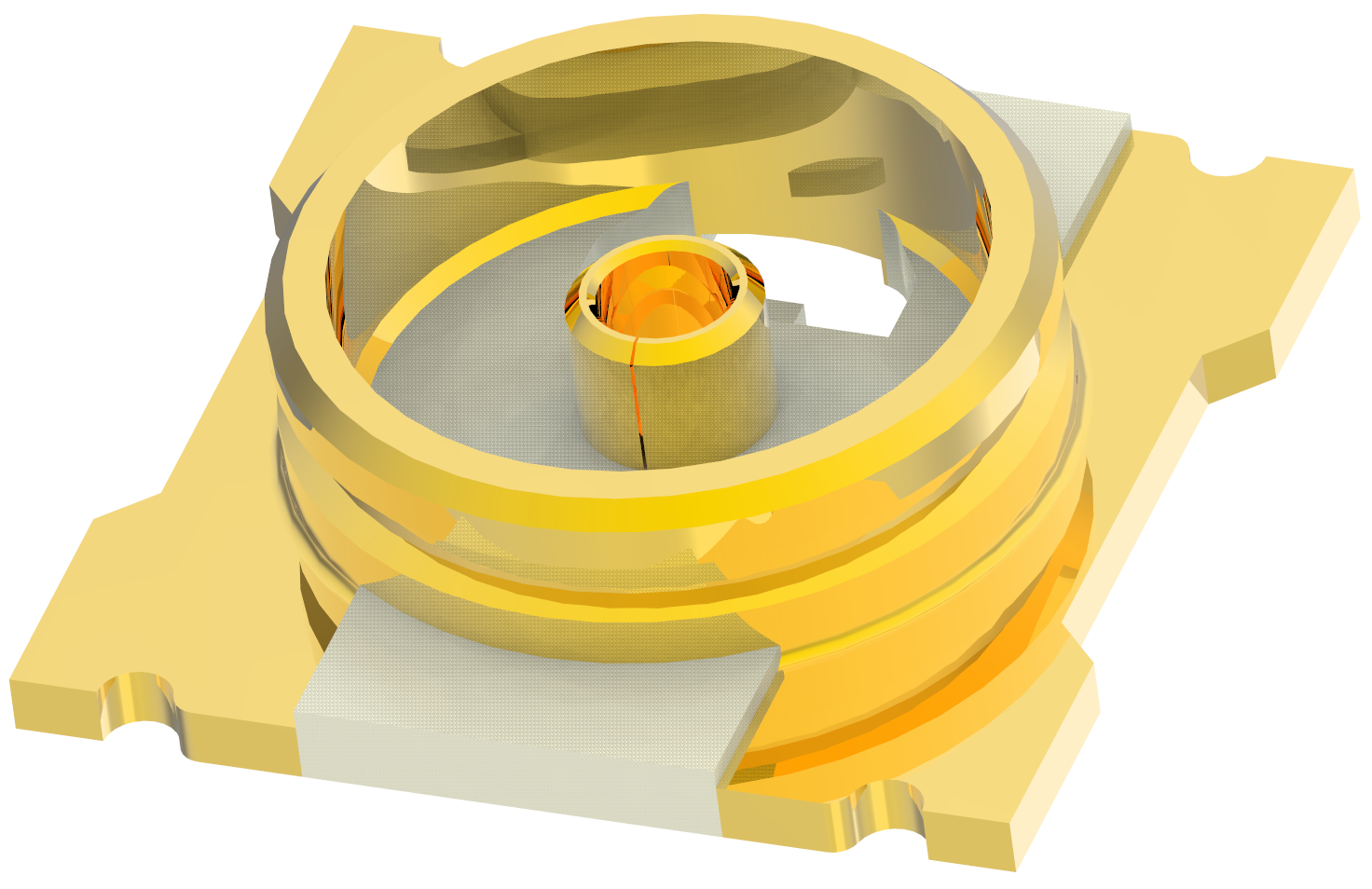

XB-RF-7053A-01G 3D Drawings		IPEX 7th generation board end socket/2.0 × 2.0 × 0.53mm IPEX connector/1.4mm RF connector/MFF connector 4PIN	RF connectors	Normal	A week	0.36g	1000	3000	Normal	Compatible Xibang	Consult
XB-RF-7053A-01G-X 3D Drawings		IPEX 7th generation board end socket/2.0 × 2.0 × 0.53mm IPEX connector/1.4mm RF connector/MFF connector 4PIN	RF connectors	Normal	A week	0.36g	1000	3000	Normal	Compatible Xibang	Consult

product material	1.RF connector	Material
	2.Subject	brass
	3. Insulator	Teflon
	4. Center needle	brass
	5.Surface treatment	gold/nickel plating

Electrical properties	Rated current	1.5A
	Rated voltage	60V
	temperature range	-55±155°C(PE Cable -40±85°C)
	Withstand voltage	200V
	Insulation resistance	≥ 100 MΩ
	Contact resistance (initial/after life)	30Ω

Durability	No load life	≥500 times
	Load life (maximum rated load)	≥500 times
	center contact resistance	≤1.5MΩ
	Outer conductor resistance	≤1MΩ
	center conductor retention	≥0.57N
	Insertion loss	0.20dB/3GHz
	Voltage standing wave ratio straight type	≤1.22/3GHz
	Voltage standing wave ratio curved type	≤1.30/3GHz

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
