XB-RS-DC-08-Xibang Electronics Co., Ltd. is a global OEM manufacturer that provides high-performance switch, socket connector components, solutions, and intelligent engines that connect the world!

| Product Center > Switch > Rocker switch

Scan code to browse

3D fileXB-RS-DC-08 Specifications XB-RS规格书
DrawingsXB-RS-DC-08

▍Xibang material number：XB-RS-DC-08

Product type: Rocker switch Rated current: 6A 10A AC Rated voltage: 125V 250V AC Contact resistance: 30m Ω max

Voltage resistance: 1500V Insulation resistance: 100 M Ω min Life test: 10000 times Working temperature: -10 ℃ ± 105 ℃

Plastic: PA66 Pin Material: Brass Welding Waterproof: Solder Wire/Solder Plate Product Compliance: UL.VDE.ROHS

3D file and drawings

3D fileXB-RS-DC-08 Specifications XB-RS规格书

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

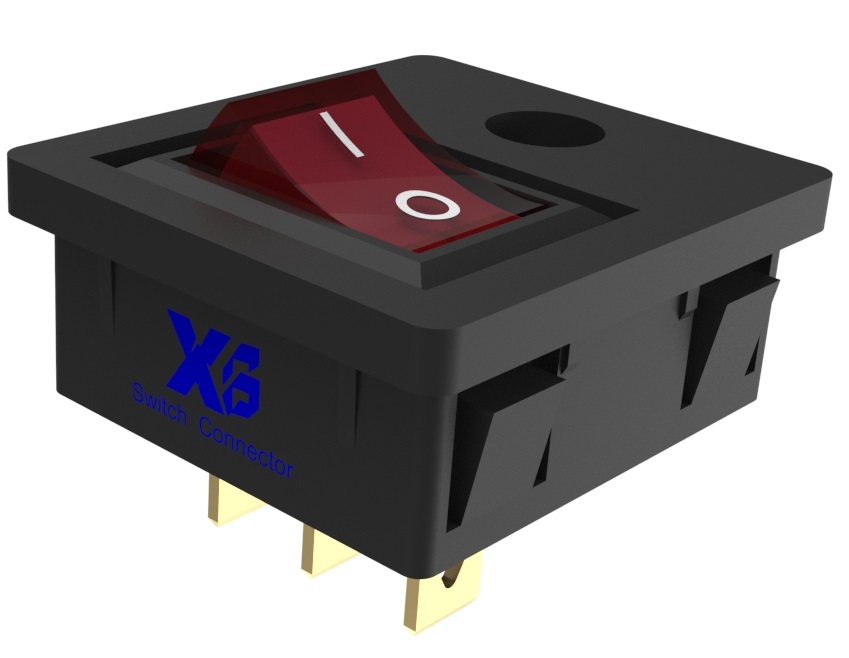

XB-RS-DC-08 3D Drawings		31.7 * 28.2 * 12.6mm ship type switch with light, 2 positions, 2 in 1+DC socket/LED power switch with light ON OFF, DC socket 5520/LED power switch with light, DC socket 5521/LED ship type switch with light, DC socket 5520/5525		Normal	7-15 days	0.3g	1000	5000	1000	Nothing	Consult

Product type features	1. Ship type switch	material quality
	2. Button	PA66
	3. Shell	Nylon / PA66 / 94V-0~2
	4. The base	PA66
	5. Feet	Brass silver plated

	1. Operating temperature range:	-10℃±105℃
	2. Rated value:	6A 10A 125V 250AC
	3. Insulation resistance:	100MΩ
	4. Voltage resistance:	1500V AC
	5. Contact resistance:	30MΩ
	6. Life:	10000 Times

structural property	Operation force:	5N~9N
	Terminal strength:	80N
	Salt Spray Test:	35±0.2°C 24/h

Environmental resistance	Cold resistance	-20±2℃ 96/h
	resistance to effect of heat	105±2℃ 96/h
	Moisture resistance	40 ± 2℃ relative humidity 90~95% 96 / h
