XB-XZ-108S-Xibang Electronics Co., Ltd. is a global OEM manufacturer that provides high-performance switch, socket connector components, solutions, and intelligent engines that connect the world!

| Product Center > Switch > Rotary switch

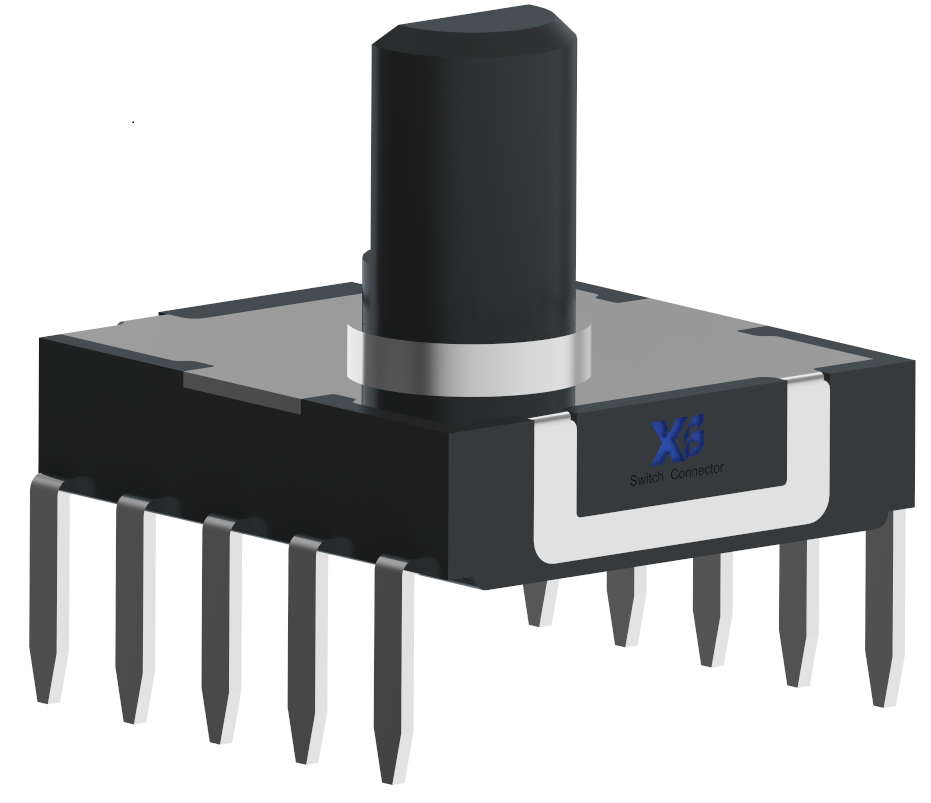

▍Xibang material number：XB-XZ-108S

Product type: Rotary Switch Rated current: 10mA Rated voltage: 5V 28V DC Contact resistance: 30m Ω max

Withstand voltage: 100 V DC Insulation resistance: 100 M Ω min Life test: 30000 times Working temperature: -15 ℃± 65 ℃

Plastic material: PA66/POM Terminal material: Brass silver plated Operating force: 220 ± 30gf Product meets: ROHS

3D files and drawings

3D filesXB-XZ-108S Specifications XB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-XZ-108S 3D Drawings		Rotary switch 9-position/inline rotary switch/360 degree rotary switch 9-position/rotary switch 11.4 * 12.4 * L		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult

Product type features	1. Rotation switch	material quality
	2. Button	POM
	3. The shell	PA66
	4. Terminal	Brass silver plated

1. Operating temperature range:		-15℃±65℃
2. Rated value:		10mA 28V 5V
3. Insulation resistance:		10MΩ
4. Voltage resistance		100V DC
5. Contact resistance:		30MΩ
6. Life:		30000 Times
7. Operation force		220±30gf

Environmental resistance	Cold resistance	-30±2℃ 96/h
	resistance to effect of heat	85±2℃ 96/h
	Moisture resistance	85 ± 2℃ relative humidity at 85% 500 / h

Packaging information:	Package quantity	100
	Packaging type	pallet
	Package Quantity (1c / t)	1600
	Package size (mm)	*470360290*

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
