XB-TM-1201M| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |

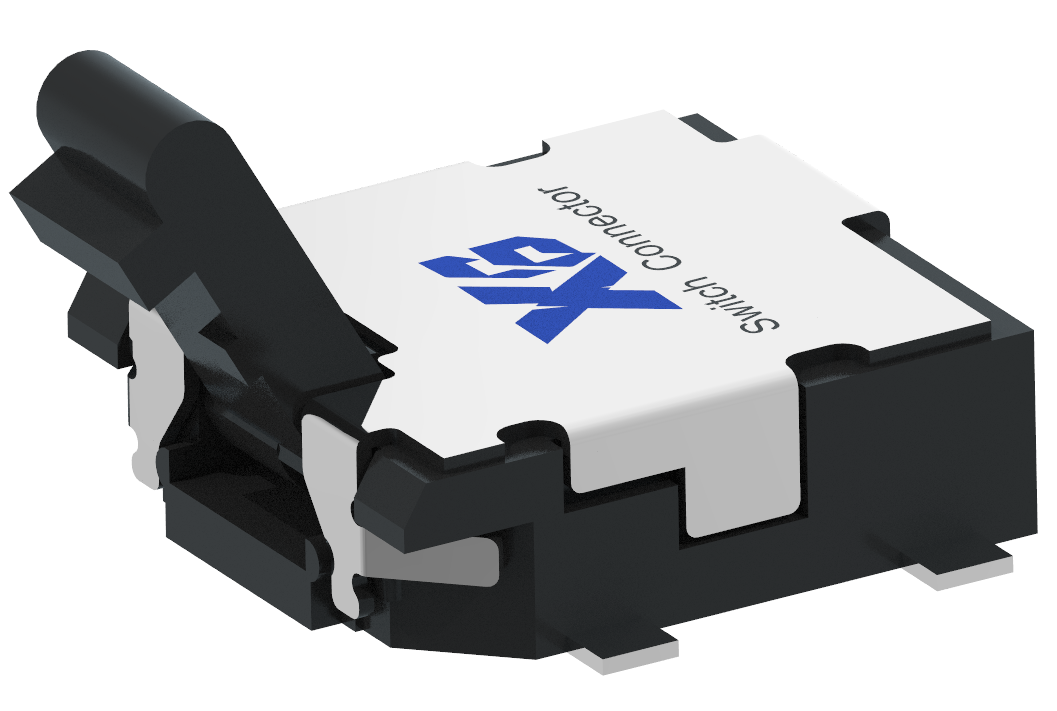

XB-TM-1201M  3D
 Drawings |
  |
4.2x3.7x1.3mm normally closed patch touch switch/normally open reset button switch/self reset button switch/reset detection switch/silent patch reset switch/microswitch normally open/normally closed | Normal | 4-7 days | 0.3g | 500 | 2000 | 10000 |  Compatible Xibang |
||

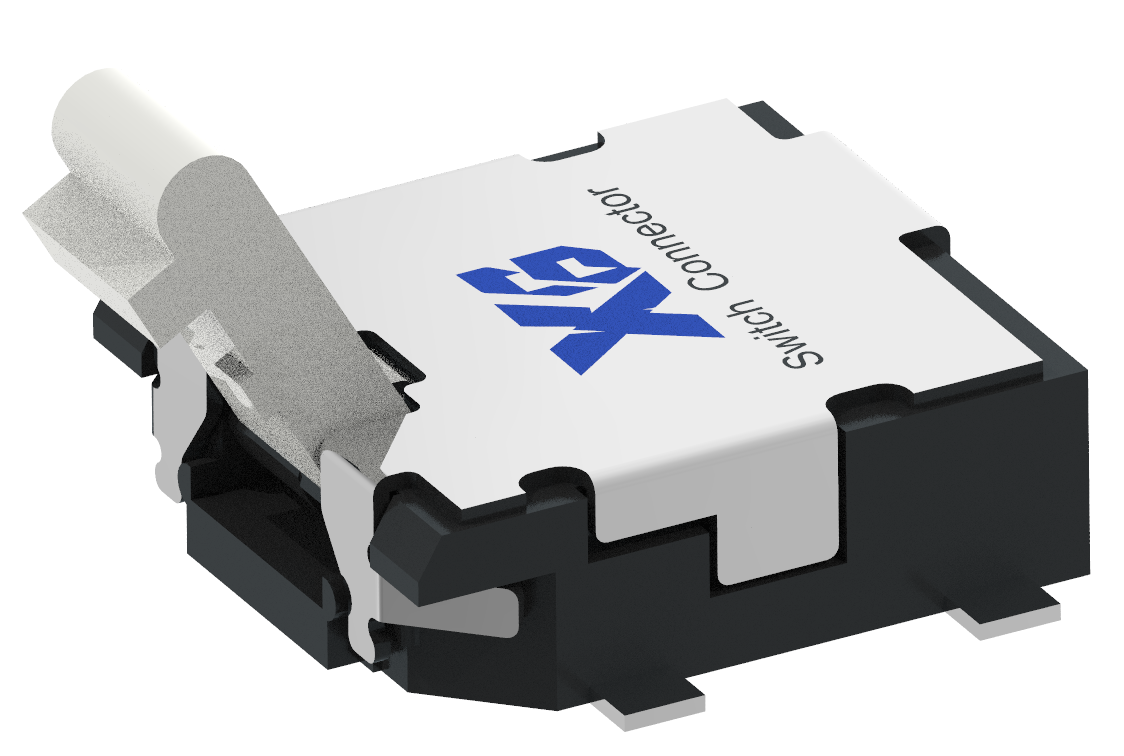

| XB-TM-1201M-X 3D
Drawings |
  |
4.2 * 3.7 * 1.3mm Chip Normally Open Detection Switch/SMD Normally Closed Detection Switch/Reset Silent Switch/SMD Light Touch Switch Normally Closed Normally Open/SMT Microswitch PUHS OFF/Detection Switch PUHS ON | Normal | 4-7 days | 0.3g | 500 | 2000 | 10000 | Compatible Xibang |
||

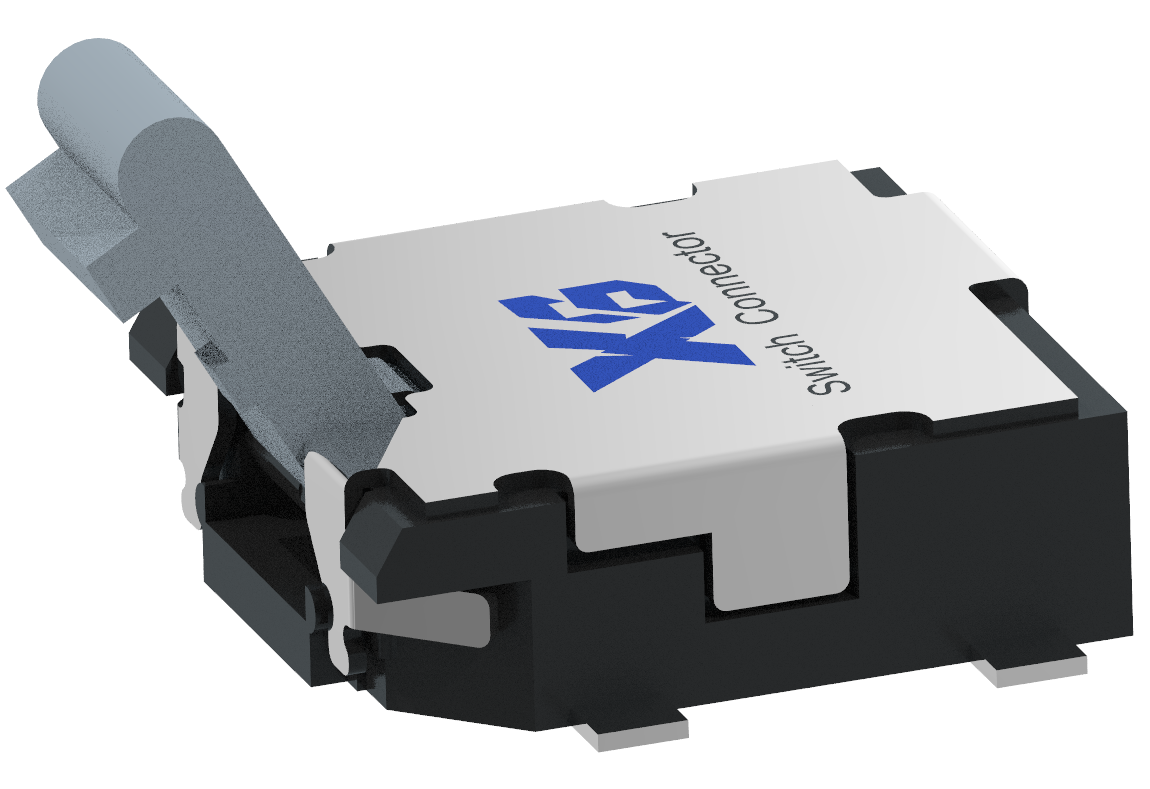

| XB-TM-1201M-XX 3D
Drawings |
  |
4.2x3.7x1.3mm/SMD light touch switch press off/SMD button switch press on/press on reset light touch switch/normally open micro switch/normally closed detection switch | Normal | 4-7 days | 0.3g | 500 | 2000 | 10000 | Compatible Xibang |
| Product material | 1. Detection Switch | material quality |
| 2. The base | PA66 | |
| 3. Spring | SUS | |
| 4. Leverage | SUS | |
| 5. Button | POM | |
| 6. The lid | POM | |
| 7. Welding feet | Brass silver plated | |
| Electric performance | Use temperature range (standard) | -10℃±60℃ |
| Service temperature range (vehicle) | -40℃±85℃ | |
| Maximum rating (resistance load) | 0.5A 30V DC | |
| Minimum rating (resistance load) | 0.3A 12V DC | |
| Operation force | 30gf±12gf | |
| withstand voltage | 250V AC | |
| insulation resistance | 200MΩ min | |
| Contact resistance (initial / post-life) | 100MΩ | |
| lasting quality | No load life | 50000 Times |
| Load life (maximum rated load) | 50000 Times | |
| Environmental resistance | Cold resistance | -40℃/500h |
| resistance to effect of heat | 85℃/500h | |
| Moisture resistance | 60℃, 90 to 95% relative humidity for 500h | |
| Temperature cross-change test | ||
| In the environment of the icon, cycle 5 times, then put in the normal environment, and test after 30 minutes | No indication of any damage to the mechanical and electrical properties | |
|
|
||
| welding condition | ||
| When automatically immersed in welding | preheat temperature | Up to 100℃ |
| Preheat temperature time | Maximum 60 seconds | |
| welding temperature | 255±5℃ | |
| Welding impregnation time | 5 ± for 1 second | |
| Hand welding | welding temperature | 350±5℃ |
| weld period | Maximum 5s | |
