▍Xibang material number：CF11S

Product Name: FPC Connector/FFC Connector Rated Current: 0.3A/0.5A DC/AC Rated Voltage: 30V 50V DC/AC Withstand Voltage: 250V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω Welding method: Reflow soldering/Wave soldering Packaging method: Ribbon/Tube assembly

Working temperature: -40 ° C ± 85 ° C Terminal material: Phosphorus copper Plastic material: LCP UL 94V-0 Product compliance: ROHS

3D files and drawings

3D filesXB-FPC-CF-11052D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11082D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11092D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11202D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11262D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11412D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11452D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11502D1RA-05-NH Specifications FPC0.5
3D filesXB-FPC-CF-11512D1RA-05-NH Specifications FPC0.5

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

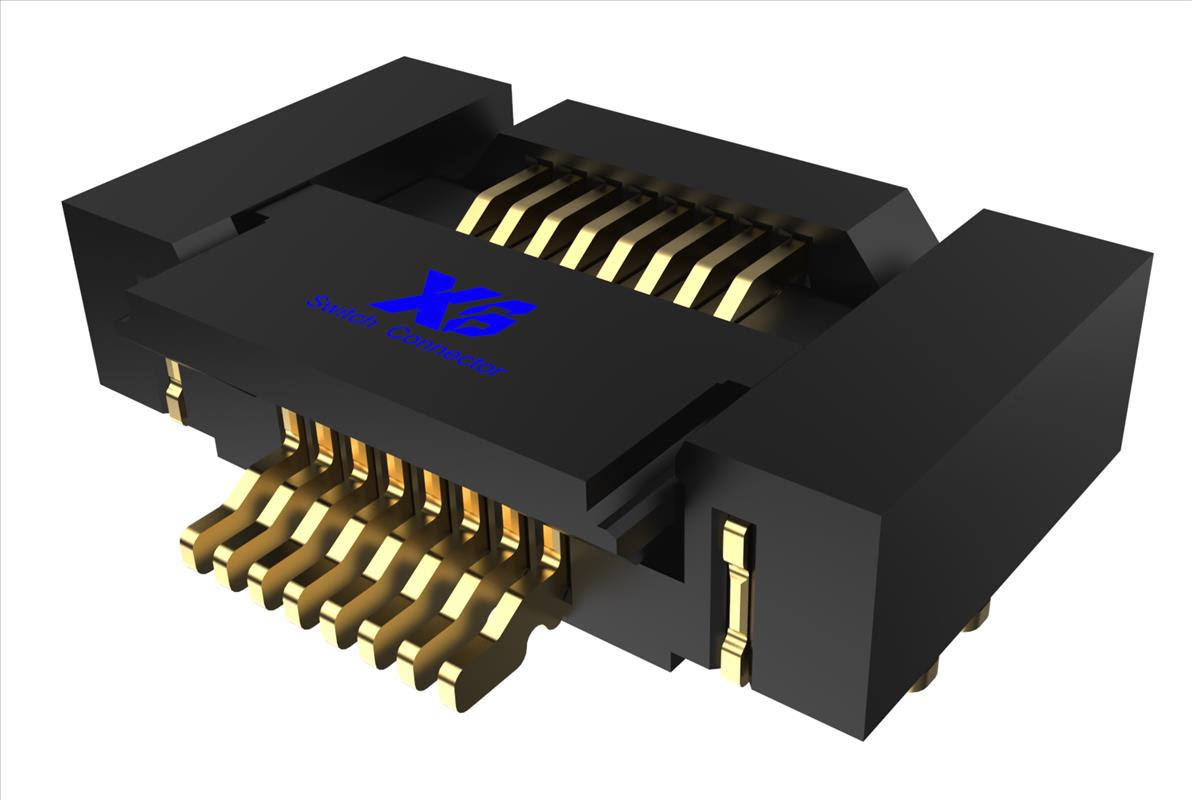

XB-FPC-CF-11052D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 5PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11082D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 8PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11092D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 9PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11202D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 20PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult

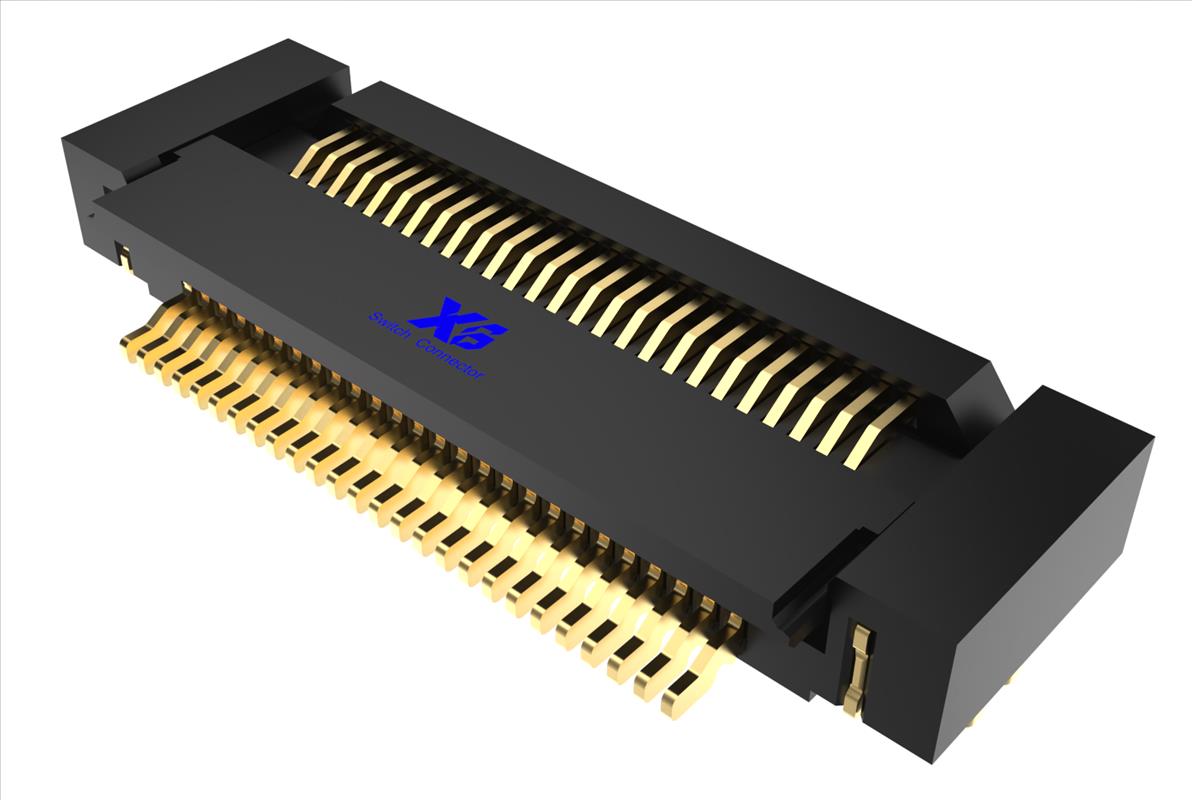

XB-FPC-CF-11262D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 26PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11412D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 41PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11452D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 45PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11502D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 50PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult
XB-FPC-CF-11512D1RA-05-NH 3D Drawings		FPC connector/side entry flexible circuit connector SMT/FPC connector spacing: 0.5mm/FPC line to board connector/FF connector/flexible connector/FPC interface 51PIN		Normal	4-7 days	0.170	5000 pieces/disc	15000	10000	Compatible Xibang	Consult

Product material	1. FPC connector/FFC connector	material quality
	2. The main body	LCP (natural color) UL 94V-0
	3. Lock buckle	LCP (black) UL 94V-0
	4. Terminal	phosphor copper
	5. Positioning film	yellow metal

Product type features	rated voltage	30V/50V AC/DC
	rated current	0.3A/0.5A AC/DC
	operating temperature range	-40°C±85°C
	Storage temperature range	-40°C±85°C
	contact resistance	30mΩ
	insulation resistance	100mΩ
	withstand voltage	250V AC

machine accessory	PCB installation fixed type:	soldering-block
	Connector installation type:	Board installation

Welding experiment	The solder part was immersed in a tin furnace of 245℃± 5℃ for 3 seconds	The welding end shall be easily moistened by molten material and the tin area shall occupy more than 90% of the immersion area

Heat resistance of welding tin	Pre-heating: 150~180°C	Posttest connection impedance values in the
	Welding: 250 ± 5℃	Below 50m Ω and no abnormal appearance FPC retention strength above PIN number X0.3N
	Peak temperature: 250 ± 5°C
	230℃ and above 30 ± for 5 seconds
Recommended welding conditions (temperature / welding time)	Pre-heating: 150~180°C
	Welding: 250 ± 5℃
	Peak temperature: 250 ± 5°C
	230℃ and above 30 ± for 5 seconds
This temperature graph is only for reference, and can be changed according to the type and quantity of solder

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
