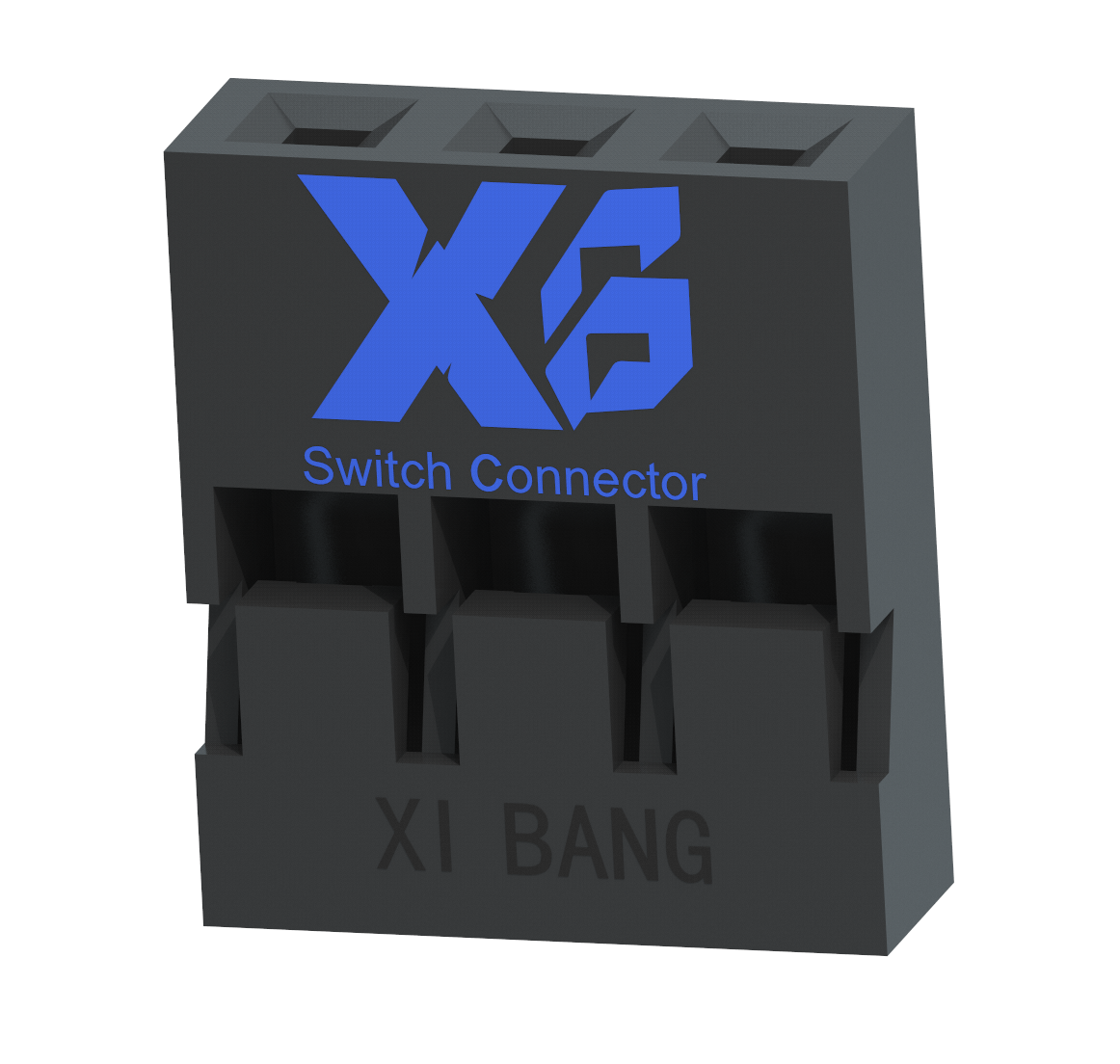

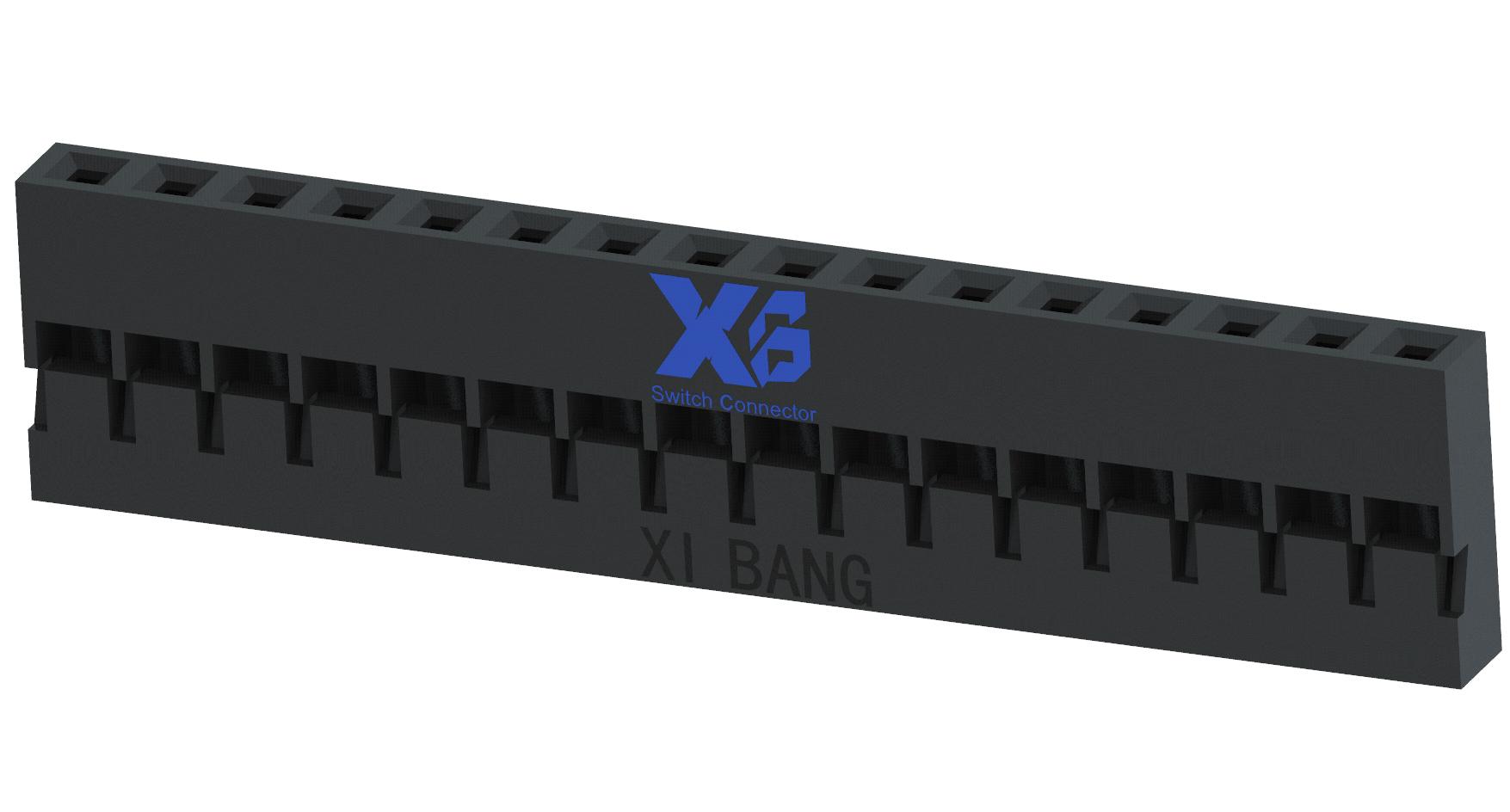

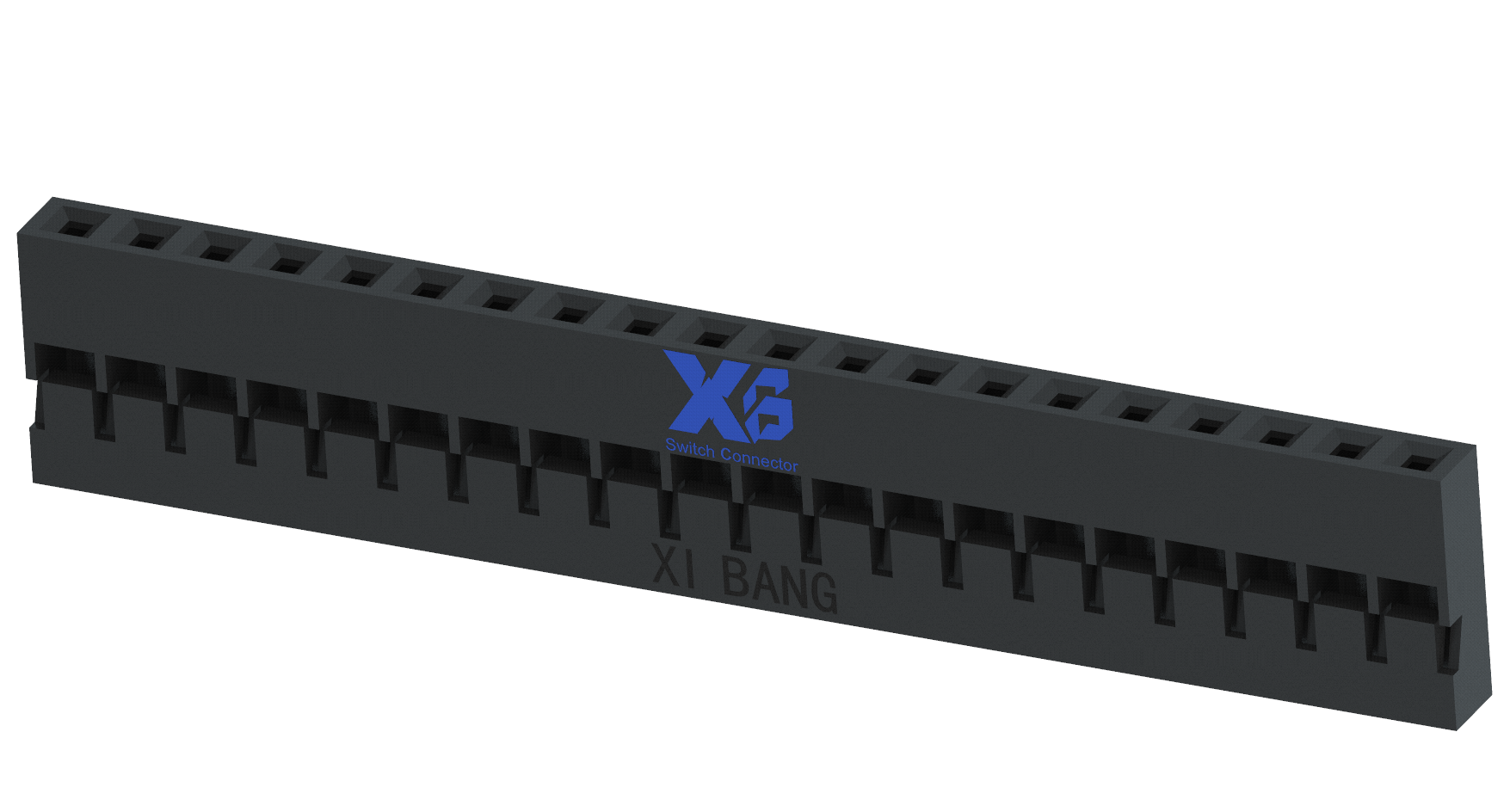

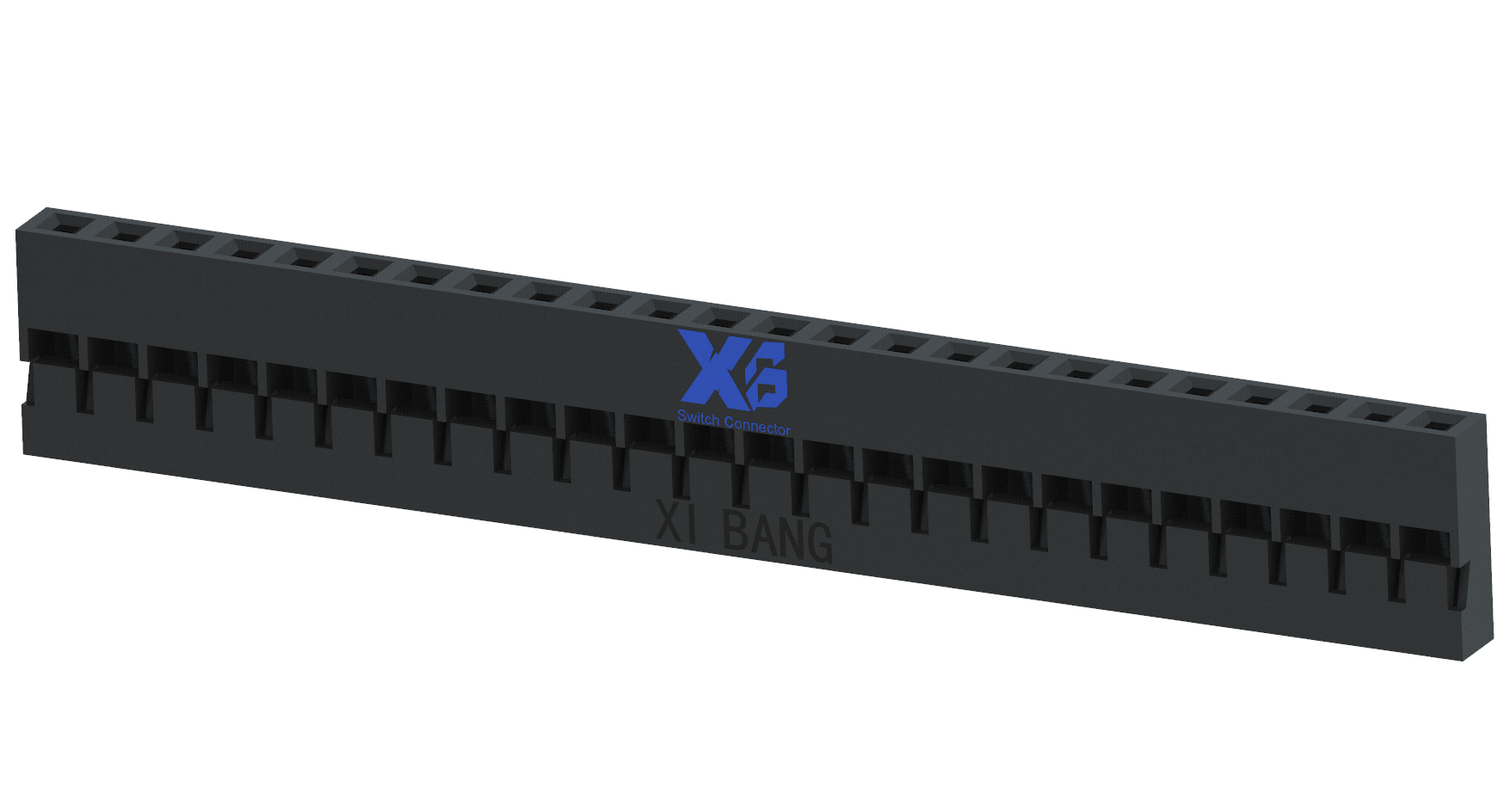

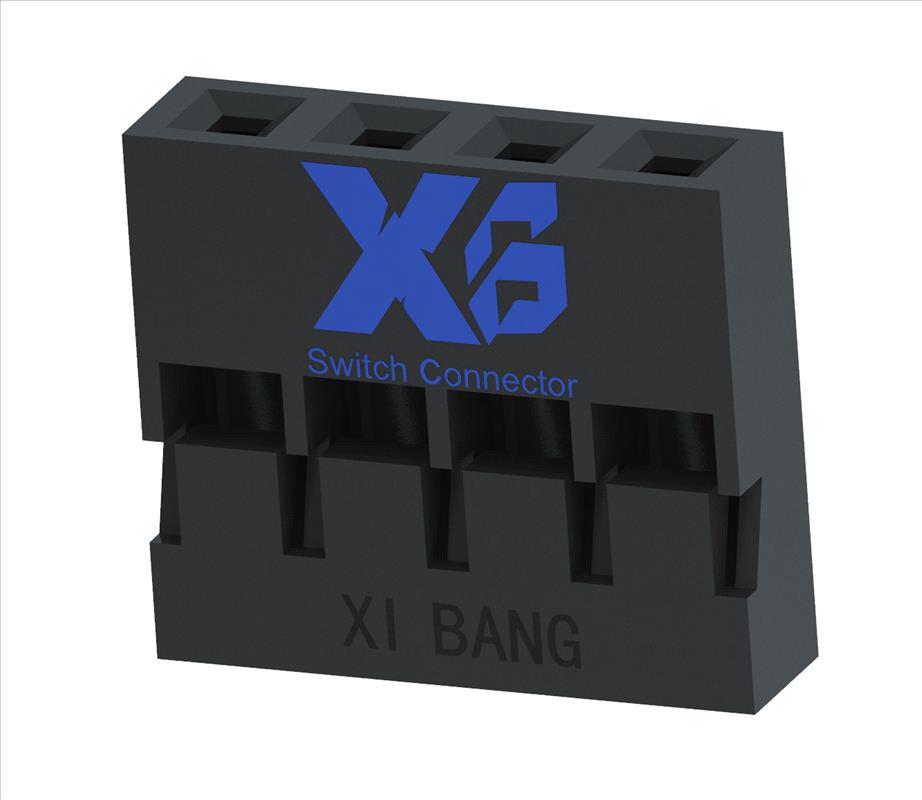

XB-X20-CI03-03S0010
3D
Drawings
| Product material | 1. Line to board connector | material quality |
| 2. The shell | UL 94V-2/UL94V-0 | |
| 3. Terminal | Phosphorus copper is silver plating / phosphorus copper gold plating | |
| 3. Rubber shell | LCP | |
| 4. The PIN needle No | Phosphorus copper is silver plating / phosphorus copper gold plating | |
| Product type features | rated current | 3A AC/DC |
| rated voltage | 100V AC/DC | |
| operating temperature range | -25°C±85°C | |
| contact resistance | 30mΩ | |
| insulation resistance | 100 mΩ | |
| withstand voltage | 800V AC | |
| Environmental resistance | Cold resistance | -25±2℃ 96/h |
| resistance to effect of heat | 85 ± 2 ℃ 96/h | |
| Moisture resistance | 40 ± 2℃ relative humidity 90~95% 96 / h | |
| machine accessory | way to install | Welding wire / welding plate |
| Connector installation type: | Board installation | |
| Welding experiment | Dip the terminal foot in the flux for 5 seconds, then immerse the terminal foot in a 255 ± 5℃ tin furnace for 3 ± 0.5 seconds | The tin attached area shall exceed 95% of the immersion surface area |
| Heat resistance of welding tin | The terminals shall be tested for tin resistance under the following conditions, and test the contact impedance after solder heat resistance | |
| Based on: EIA-364-56A | No cracks, scratches, and breaks | |
| Weldability temperature: 250 °± 5C | ||
| Time: 5s + / -1s | ||
| Reflow welding and wave crest welding experiments | wave-soldering | The recommended solder temperature is 260℃ (500°F) for a maximum of 5 seconds |
| Hand welding | The 30W flipping iron is used to control the temperature at 350℃, and the welding time is about 5 seconds | |
| Back furnace welding | The maximum temperature of SMT backwelding furnace is 260℃ and the temperature is 260℃, the maximum time shall not exceed 10 seconds | |
|
|
||
