▍Xibang material number：XB-A01MH75-3P

Product name: Blade battery holder Rated current: 8A Rated voltage: 30V Plastic: PA9T

Metal material: brass gold-plated C5191 Service life: 5000 times Solderability: 260 ± 5 ℃, withstand voltage: 500V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω PIN position: 2P-16P spacing: 2mm

3D files and drawings

3D filesXB-A01MH75-3P Specifications Blade battery holder
3D filesXB-A01MH75-3P Specifications Blade battery holder
3D filesXB-A01MH75-3P Specifications Blade battery holder

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

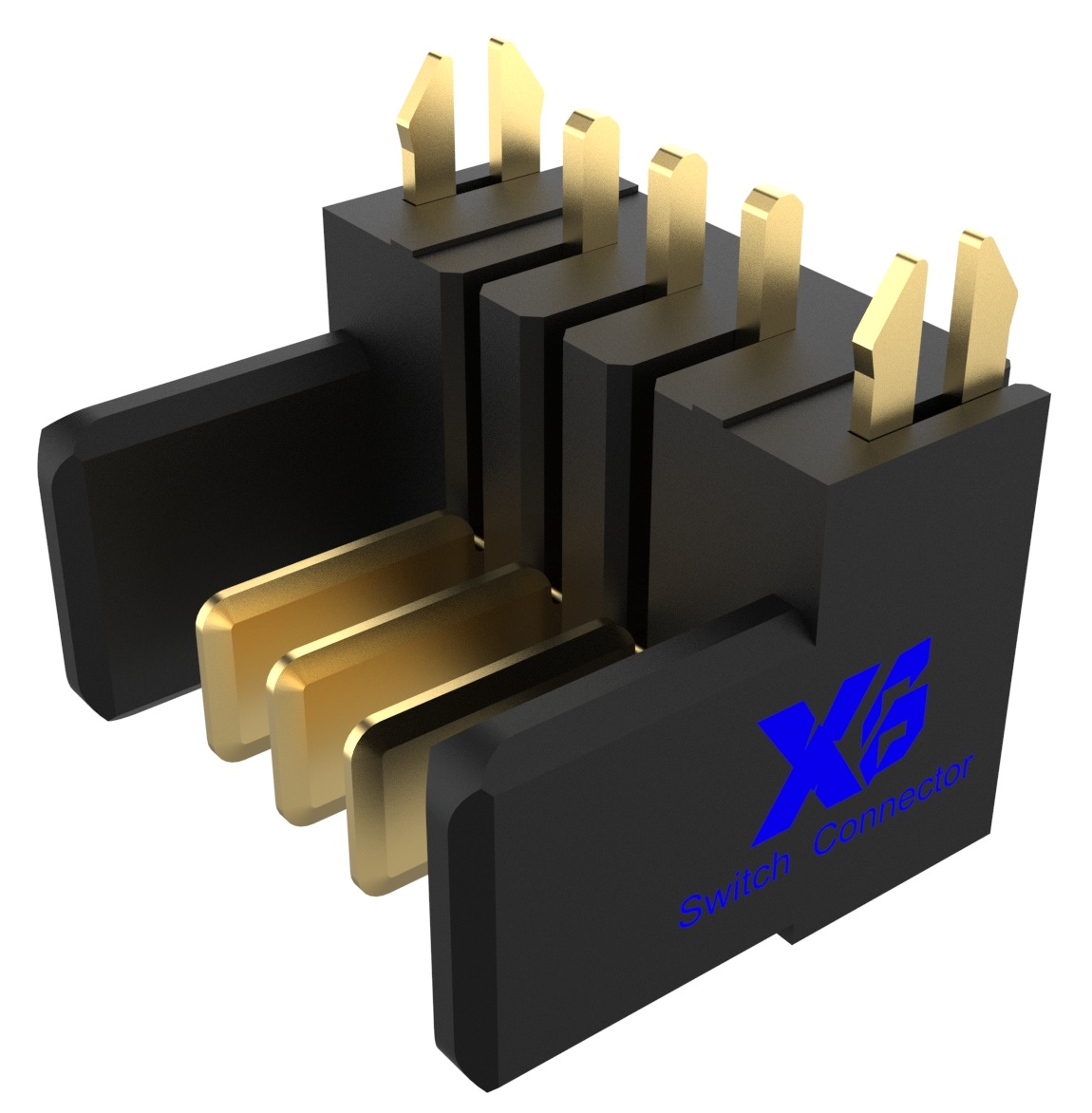

XB-A01MH75-3P 3D Drawings		11.5 * 10.1 * 7.5mm 3P blade male/blade battery holder/blade battery holder spacing: 2.0mm/blade socket raised/high current blade connector/blade connector		Normal	4~7	0.5	500	3000	10000	Compatible Xibang	Consult
XB-A01MH75-3P-X 3D Drawings		11.5 * 10.1 * 7.5mm 3P blade male/blade battery holder/blade battery holder spacing: 2.0mm/blade socket raised/high current blade connector/blade connector		Normal	4~7	0.5	500	3000	10000	Compatible Xibang	Consult
XB-A01MH75-3P-X-X 3D Drawings		11.5 * 10.1 * 7.5mm 3P blade male/blade battery holder/blade battery holder spacing: 2.0mm/blade socket raised/high current blade connector/blade connector		Normal	4~7	0.5	500	3000	10000	Compatible Xibang	Consult

product name	1. Blade battery plug	material quality
	2. The shell	Nylon at 10T GN2330 UL 94-V
	3. Terminal	Brass gold plated
	4. spacing	2.0mm
	5. Insulator	PA10T

	Use the temperature range	-25℃±85℃
	Maximum rating (resistance load)	12A 30V DC
	Minimum rating (resistance load)	8A 12V DC

Electric performance	withstand voltage	500V
	insulation resistance	100MΩ 500V DC
	Contact resistance (initial / post-life)	30mΩ max./100mΩ max.

lasting quality	No load life	5000 Times
	Load life (maximum rated load)	5000 Times

Environmental resistance	Cold resistance	-25℃±3°C 48/h
	resistance to effect of heat	85℃±2°C 96/h
	Moisture resistance	60℃, 90 to 95%RH 500h
	Salt mist performance	35°C ± 2°C 4h ± for 15 sec
welding condition
When immersed in welding	preheat temperature	100℃
	Preheat temperature time	60s max.
	welding temperature	260±5℃
	Welding impregnation time	3±0.5s

Hand welding	welding temperature	350±10℃
	weld period	4s max.

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
