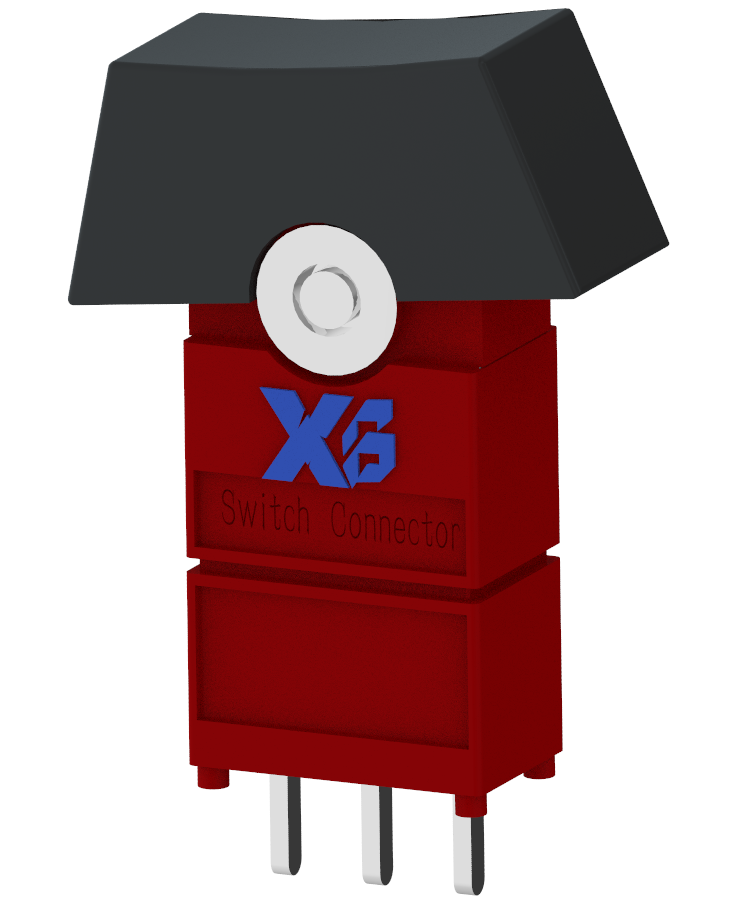

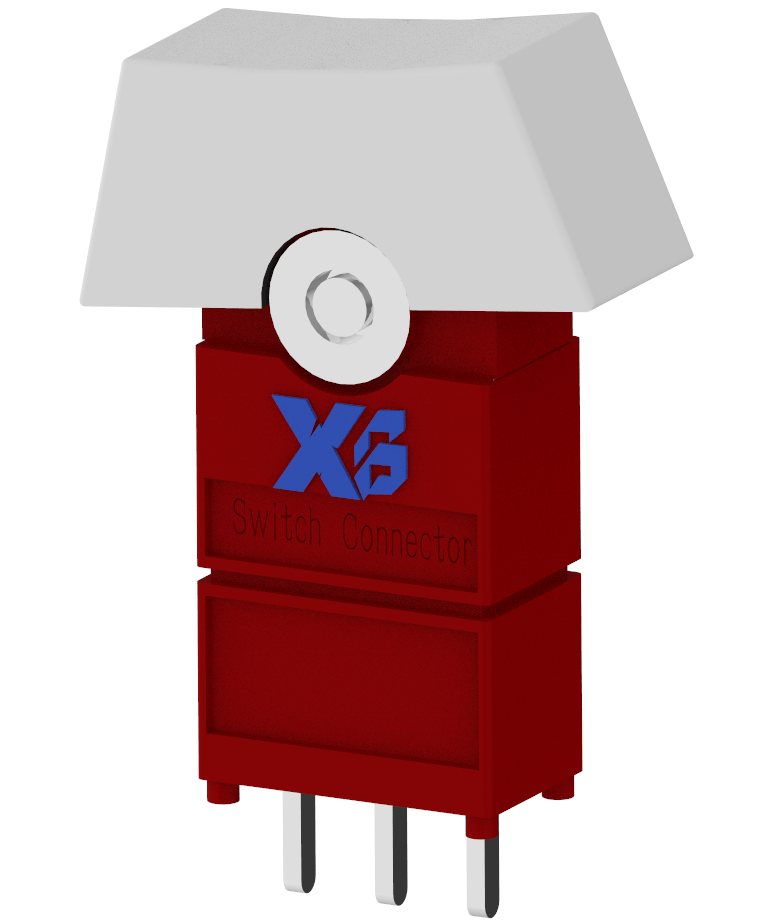

▍Xibang material number：XB-SA-0-102-C02-0000-RS

Product type: button switch Rated current: 3A 5A Rated voltage: 125V 250V AC Contact resistance: 10m Ω max

Withstand voltage: 1500V AC Insulation resistance: 1000 M Ω min Life test: 40000 times Working temperature: - 30 ℃ to+85 ℃

Pin: 3PIN Switch Function: Self reset Operating force: 250gf ± 100gf Product certification: ROHS

3D files and drawings

3D filesXB-SA-0-102-C02-0000-RS（彩色) Specifications 摇摆开关规格书
3D filesXB-SA-0-102-C02-0000-RS（彩色) Specifications 摇摆开关规格书

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-SA-0-102-C02-0000-RS 3D Drawings		Button switch ON OFF/Swing switch 2-speed 3-speed/Rocker switch 2-speed 3-speed/Rocker switch 2-speed 3-speed/Rocker switch/Power switch/Rocker switch 3-speed/Rocker switch 2-speed		Normal	4-7 days	0.000	50000	2000	10000	Compatible Xibang	Consult
XB-SA-0-102-C02-0000-RS-X 3D Drawings		Vertical rocker switch ON OFF/Vertical ship type switch ON OFF/Two speed three speed rocker switch 6.9x14.5x17.27mm/Two position three position rocker switch 6.9 * 14.5 * 17.27mm		Normal	4-7 days	0.000	50000	2000	10000	Compatible Xibang	Consult

Product material	1.toggle switch	PA66 POM
	2.cover	SUS Tin plated
	3.Base	PA66 POM
	4. Contact spring	Beryllium copper
	5.Terminal	Brass（0.30t） ag Plated

	Operating temperature range	-40℃ to 85℃
	Maximum rating (resistive load)	3A 5A
	Minimum rating (resistive load)	125V 250V AC

Electrical performance	Withstand voltage	1500V AC for 1
	insulation resistance	1000MΩ min.
	Contact resistance (at initial stage/after service life)	10mΩ MAX

Durability	No load life	40,000 cycles
	Load life (maximum rated load)	10,000 cycles

Environmental resistance	Cold resistance	-20℃ 500h
	Heat resistance	85℃ 500h
	Moisture resistance	60℃, 90 to 95%RH 500h

Welding conditions
During immersion welding	Preheat temperature	100℃
	Preheating temperature time	60s max.
	welding temperature	260±5℃
	Immersion time of welding	3±1s

During manual welding	welding temperature	350±10℃
	Welding time	4s max.
