▍Xibang material number：XB-PS-12F05

Product Name: Direct Key Switch Rated Current: 0.5A Rated Voltage: 30V DC Contact Resistance: 30m Ω max

Insulation resistance: 1000 M Ω min Voltage withstand: 250V Switching function: Self reset Operating force: 180gf ± 50gf

Service life: 50000 times Pin: 3PIN Installation method: Plug-in product certificate: ROHS

3D files and drawings

3D filesXB-PS-12F05 Specifications XB-PS-12F05-
3D filesXB-PS-12F05 Specifications XB-PS-12F05-
3D filesXB-PS-12F05 Specifications XB-PS-12F05-
3D filesXB-PS-12F05 Specifications XB-PS-12F05-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

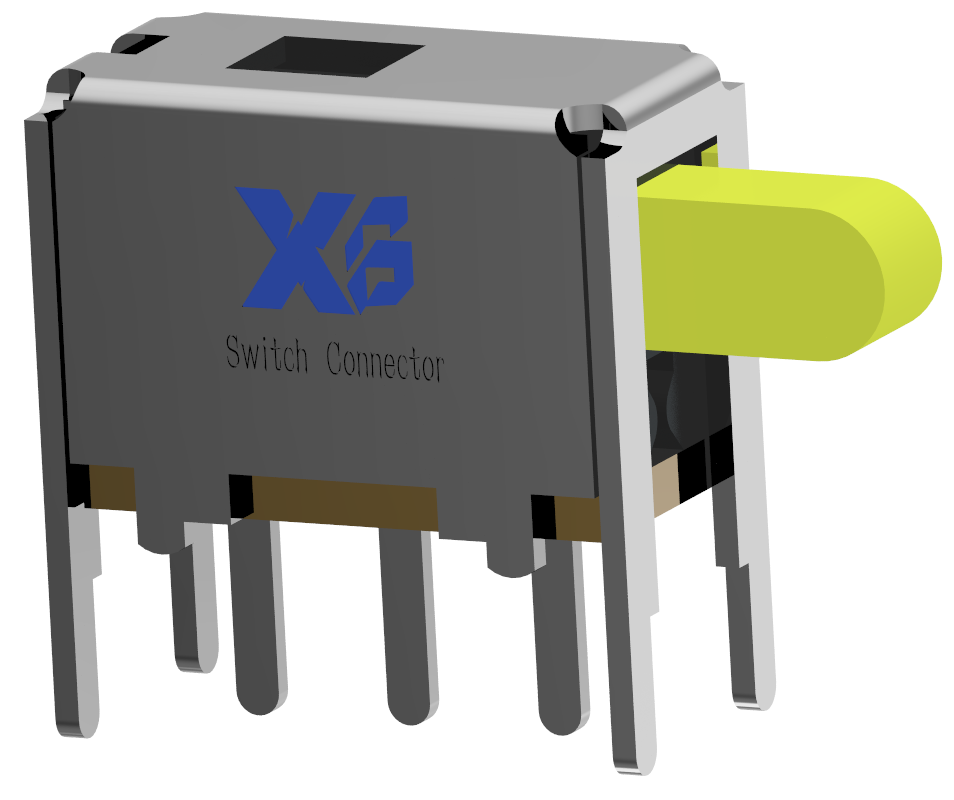

XB-PS-12F05 3D Drawings		Key switch/self reset switch/horizontal plug-in/1P2T 3PIN push switch/push switch/straight key switch		Normal	4~7 days	0.000	500	50000	10000	Compatible Xibang	Consult

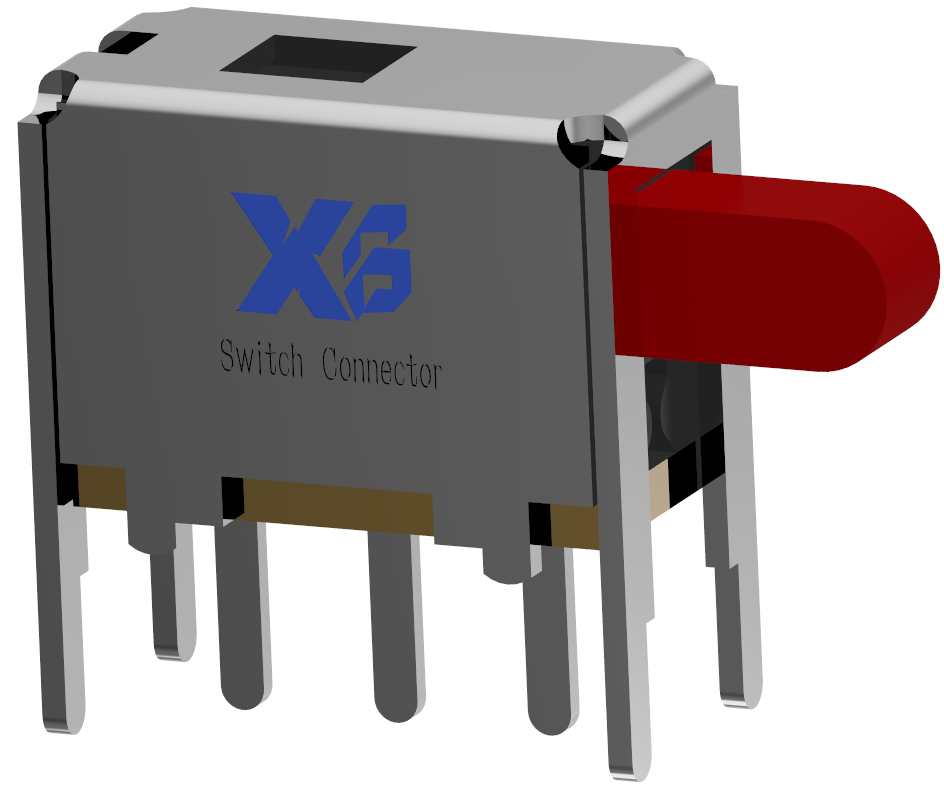

XB-PS-12F05 3D Drawings		Key switch/self reset switch/horizontal plug-in/1P2T 3PIN push switch/push switch/straight key switch		Normal	4~7 days	0.000	500	50000	10000	Compatible Xibang	Consult

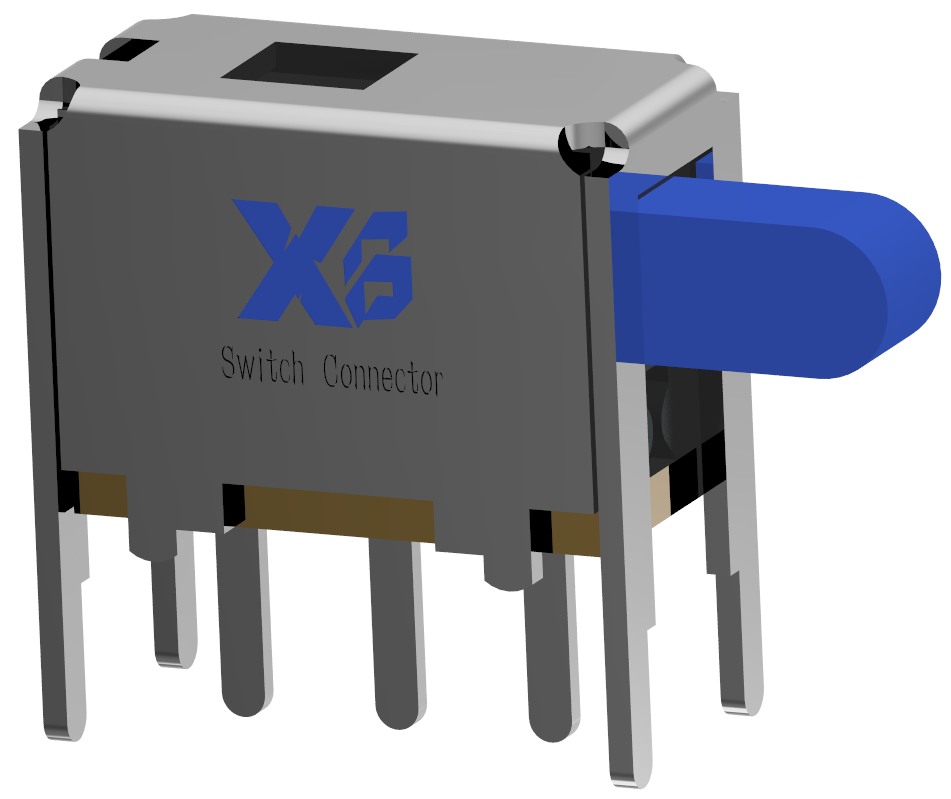

XB-PS-12F05 3D Drawings		Key switch/self reset switch/horizontal plug-in/1P2T 3PIN push switch/push switch/straight key switch		Normal	4~7 days	0.000	500	50000	10000	Compatible Xibang	Consult

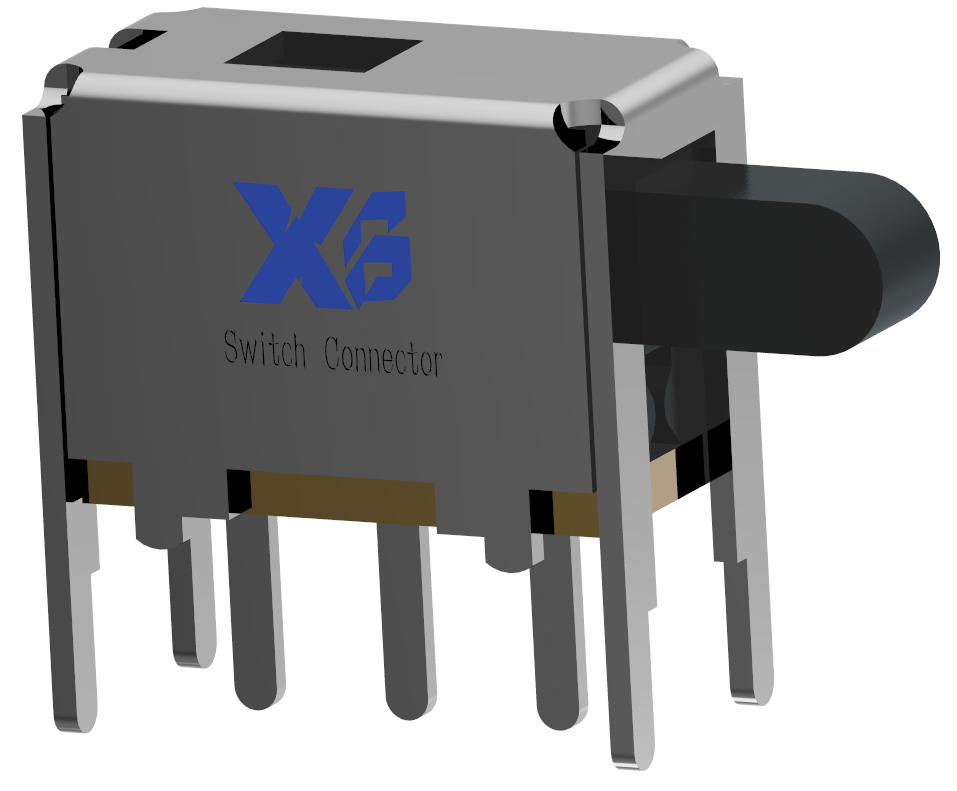

XB-PS-12F05 3D Drawings		Key switch/self reset switch/horizontal plug-in/1P2T 3PIN push switch/push switch/straight key switch		Normal	4~7 days	0.000	500	50000	10000	Compatible Xibang	Consult

Product material	1Button Puhs switch	NYLON
	2.cover	NYLON
	3.Crochet Needle	SUS
	4.Base	NYLON
	5.Spring	SUS Natural
	6.Terminal	Brass Plating silvering
	7.Contact	Phosphor Bronze Plating silvering

	Operating temperature range	-25℃ to 80℃
	Operating force	180±50gf
	Maximum rating (resistive load)	0.3A 0.5A 12V 30V DC
	Minimum rating (resistive load)	fifty μ A 3V DC

Electrical performance	Withstand voltage	250V AC for 1 minute
	insulation resistance	100MΩ min. 500V DC
	Contact resistance (at initial stage/after service life)	100mΩ max. (Initial performance)

Durability	No load life	10,000 cycles 100mΩ max.
	Load life (maximum rated load)	10,000 cycles 100mΩ max.

Environmental resistance	Cold resistance	-20℃ 96h
	Heat resistance	80℃ 96h
	Moisture resistance	60℃±2℃ 90~95%RH 96h

Automatic welding conditions	Preheat temperature	-
	Warm up time	-
	welding temperature	260±5℃
	Welding time	5±1S

Manual welding conditions	welding temperature	300℃±10℃
	Welding time	3 1/0S
	Soldering iron power	60W(max.)

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version
