XB-PJ35A080-F05J1BR-B-Xibang Electronics Co., Ltd. is a global OEM manufacturer that provides high-performance switch, socket connector components, solutions, and intelligent engines that connect the world!

| Product Center > Socket > Audio Jack > Waterproof audio socket

▍Xibang material number：XB-PJ35A080-F05J1BR-B

Product type: audio socket rated current: 1A rated voltage: 12V DC

Contact resistance: 40m Ω max withstand voltage: 500 V AC MIN insulation resistance: 1000 M Ω min

Life test: 5000 times Insertion force: 4-20 N Pullout force: 3-15 N

Spacing: 3.5mm Installation method: patch product certification: ROHS

3D files and drawings

3D filesXB-PJ35A080-F05J1BR-B Specifications XB-PJ

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

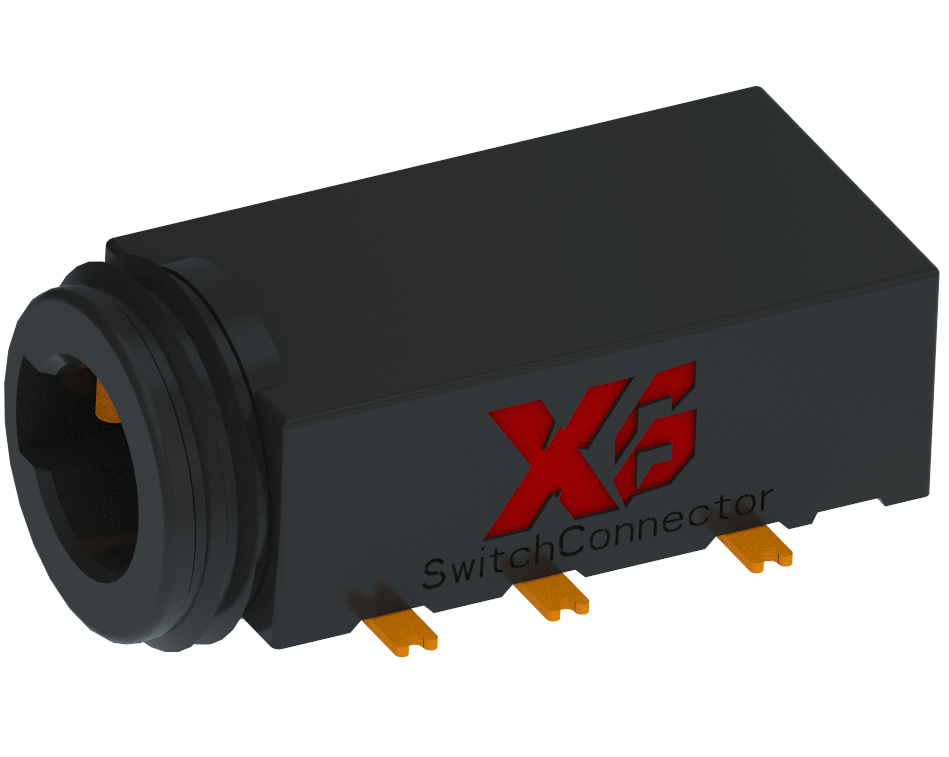

XB-PJ35A080-F05J1BR-B 3D Drawings		3.5 Headphone jack/horizontal patch/waterproof IP67/14.60 * 6.7 * 4.5mm headphone jack/4 POLE audio jack/6PIN audio jack/audio connector/headphone connector/audio jack		Normal	1-2 weeks	0.000	1000 pieces/bag	50000	10000	Compatible Xibang	Consult

产品材质	terminal 1:Audio socket	phosphor bronze,tin
	terminal 2:	brass
	terminal 3:	phosphor bronze,tin
	plastic:	pbt

环境条件	Temperature range:	-30 °C/+85 °C

	Mating cycles:	5000
	Insertion force:	2–20 N
	Withdrawal force:	2–20 N

电气数据	Contact resistance:	≥ 100 mΩ
	Rated current:	0.5 A
	Rated voltage:	30 V AC/DC
	Rated impulse voltage:	500 V/60 s

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements

Affiliated
