▍Xibang material number：XB-ctck-12h-7p

Product name: XLR connector Rated current: 6A AC/DC Rated voltage: 50V AC/DC Withstand voltage: 1500V AC

Contact resistance: 30MΩ Insulation resistance: 100MΩ Insertion force: 10N~50N Soldering temperature: 245℃±3℃

Plastic base: PA66 Metal material: brass H65 H59 Electroplating process: gold-plated copper/silver-plated copper Service life: 5000 times

3D files and drawings

3D filesXB-ctck-12h-7p Specifications XR
3D filesXB-ctck-12h-7p Specifications XR

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-ctck-12h-7p 3D Drawings		HP (SPEAKON) socket/XLR CT female seat/HPSPEAKON/XLR (CT) connector/XLR audio combination socket/HP (SPEAKON) audio socket		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult
XB-ctck-12h-7p-X 3D Drawings		HP (SPEAKON) socket/XLR CT female seat/HPSPEAKON/XLR (CT) connector/XLR audio combination socket/HP (SPEAKON) audio socket		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult

product material	1. XLR connector	material
	2.Shrapnel	SUS
	3. Base	PA66
	6. Terminal	Brass/Silver Plated/Gold Plated

	Operating temperature range	-25°C±70°C
	Maximum rating (resistive load)	6A 250V DC
	Minimum rating (resistive load)	1A 50V AC

electrical properties	withstand voltage	1500V AC
	Insulation resistance	100mΩmax
	Insertion force	10N~50N
	Contact resistance	30mΩmax

Durability	no load life	5000 times
	load life	5000 times

Environmental resistance	Cold resistance	-25±2℃ for 96h
	Heat resistance	65±2℃ for 96h
	Humidity resistance	40±2℃, 90 to 95%RH for 96h

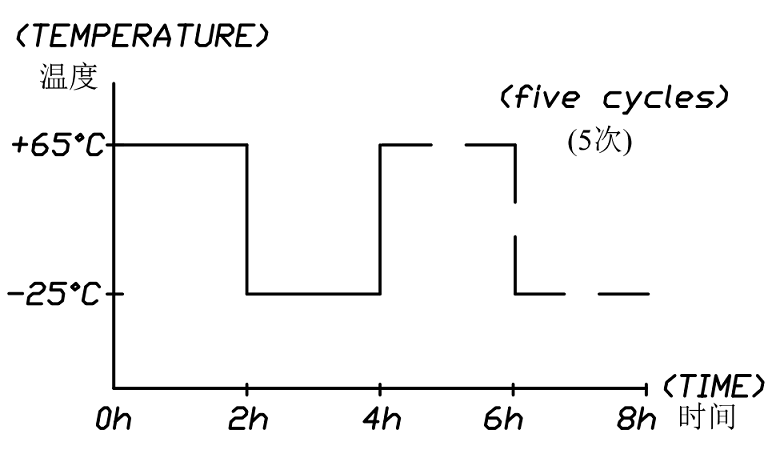

1. Temperature cycle test	Place the socket under the conditions shown below for testing, then leave it at room temperature for 30 minutes
2. Temperature distribution

Solder resistance	Insert the terminal into the solder according to the following conditions: 1. Wave front soldering (thickness 1.0~1.6mm) Preheating: 100~110°C, 30S Soldering temperature: 260+3°C, 5±1S Sample under standard atmospheric pressure was left for 24 hours. 2. Soldering iron temperature: 350±10C (60W) 3±1S


Solderability	Soldering temperature: 245±3°C	The solder area is required to reach more than 95%
	Immersion time: 3+0.5 seconds
	Immersion depth: 2.5 m (starting from the top of the terminal)

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
