XB-X05A20H10G| 製品 ID | 商品画像 | 商品説明 | 製品コード | 生産状況 | 配送サイクル | 商品の総重量 | MPQ | MOQ | 輸送中の生産 | 競争力のある購入 | 作戦 |

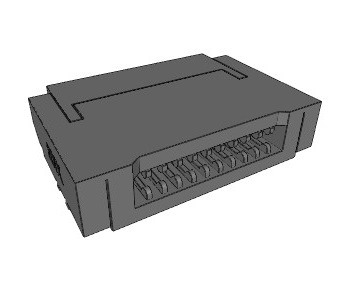

XB-X05A20H10G  3D
 図面 |
  |
FPCコネクタ0.5 mmキャッピングH=2.0 mmバックロック10 Pメッキ | 20156 | 通常 | 1週間 | 0.207 | 1500台/ディスク | 4500 | 10000 |  兼容渓榜 |
Material
Contact Material: Phosphor Bronze
Standard Insulator Material: LCP
Housing Material: LCP (UL94V-0), White /Natural
Actuator Material: LCP (UL 94V-0), Black
Plating
Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated
Electrical
Voltage Rating: 30V AC/DC
Current Rating: 0.2A AC/DC
Contact Resistance: 40mΩ Max.
Insulation resistance: 50MΩ Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown
Mechanical
Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick
Environmental and Processing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
Contact Material: Phosphor Bronze
Standard Insulator Material: LCP
Housing Material: LCP (UL94V-0), White /Natural
Actuator Material: LCP (UL 94V-0), Black
Plating
Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated
Electrical
Voltage Rating: 30V AC/DC
Current Rating: 0.2A AC/DC
Contact Resistance: 40mΩ Max.
Insulation resistance: 50MΩ Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown
Mechanical
Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick
Environmental and Processing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
