XB-DC-042E| 产品编号 | 产品图片 | 产品描述 | 在产状态 | 出货周期 | 商品毛重 | MPQ | MOQ | 生产在途 | 竞品购买 | 操作 |

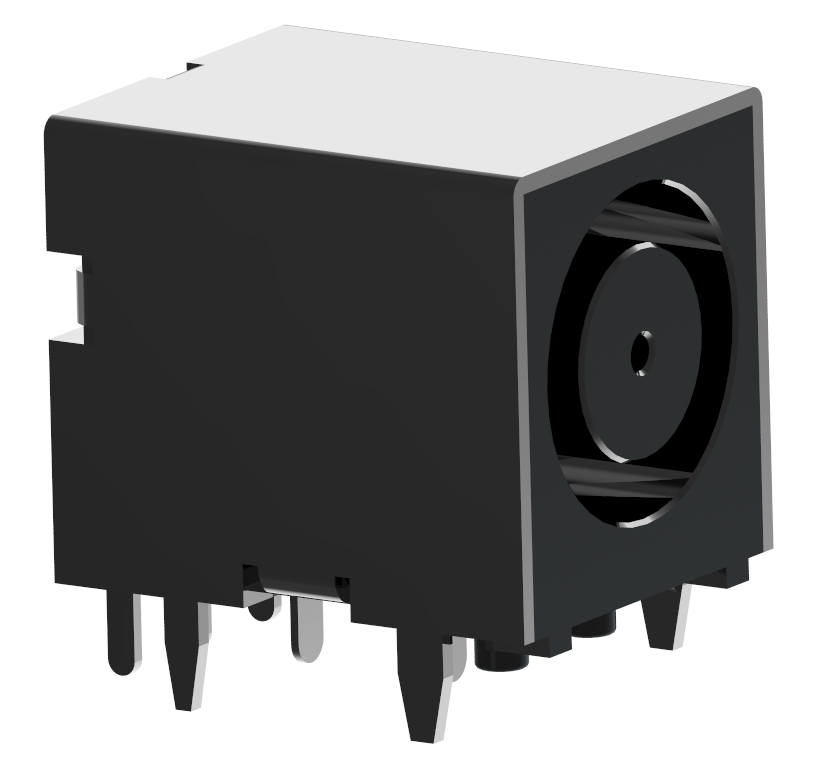

XB-DC-042E  3D
 查看图纸 |
|
卧式DC插座 笔记本DC母座 大功率DC插座 大电流卧式DC母座 | 正常生产 | 5-10天 | 0.3 | 500 | 10000 | 20000 |  兼容溪榜 |
| 产品材质 | Center pin: | Brass tin | ||
| Terminal 1: | Brass silver | |||
| Terminal 2: | Phosphor Bronze silver | |||
| Terminal 3: | Brass silver | |||
| Plastic: | Pbt | |||
| Axis support: | Brass silver | |||
| 环境条件 | Temperature range: | -20 °C/+70 °C | ||
| Mating cycles: | ≥ 5000 | |||
| Insertion force: | ≤ 30 N *1 | |||
| Withdrawal force: | 3–30 N *2 | |||
| 电气数据 | Contact resistance: | ≤ 30 mΩ | ||
| Rated current: | 10 A | |||
| Rated voltage: | 36 V DC | |||
| Rated impulse voltage: | 250 V/60 s | |||
