▍Xibang material number：XB-DC-042E

Product type: DC socket Rated current: 5A 10A Rated voltage: 12V 30V DC

Contact resistance: 30m Ω max Voltage resistance: 500 V AC MIN Insulation resistance: 100 M Ω min

Life test: 5000 salt spray tests: 24 hours Installation method: horizontal

Insertion and extraction force: 2-30 N Extraction force: 2-30 N Product certification: ROHS

3D files and drawings

3D filesXB-DC-042E Specifications XB-DC-042E-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

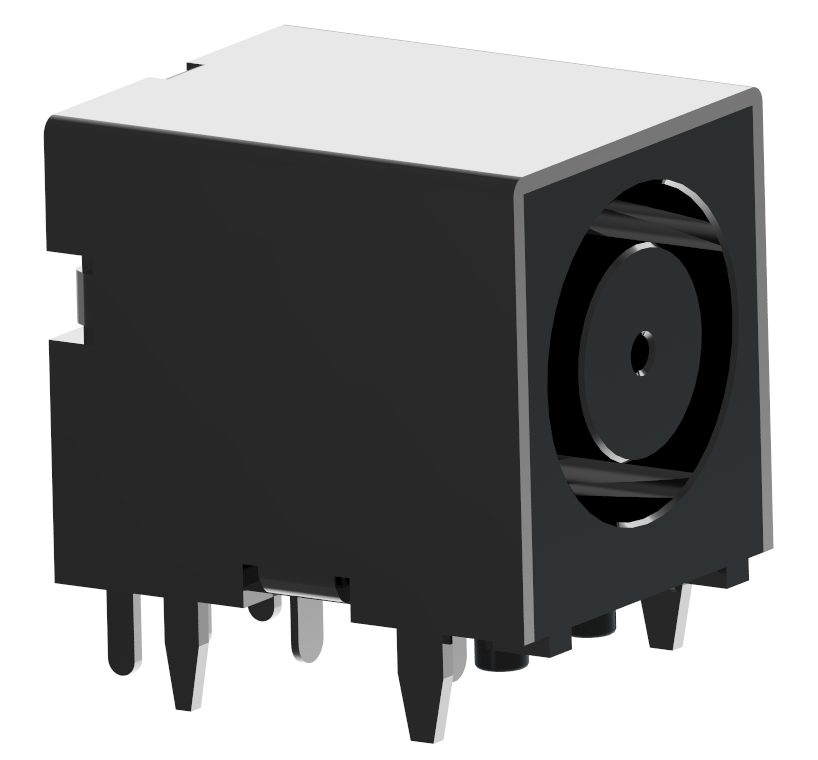

XB-DC-042E 3D Drawings		Horizontal DC socket, laptop DC mother base, high-power DC socket, high current horizontal DC mother base		Normal production	5-10 days	0.3	500	10000	20000	Compatible Xibang	Consult

产品材质	Center pin:	Brass tin
	Terminal 1:	Brass silver
	Terminal 2:	Phosphor Bronze silver
	Terminal 3:	Brass silver
	Plastic:	Pbt
	Axis support:	Brass silver

环境条件	Temperature range:	-20 °C/+70 °C

	Mating cycles:	≥ 5000
	Insertion force:	≤ 30 N *1
	Withdrawal force:	3–30 N *2

电气数据	Contact resistance:	≤ 30 mΩ
	Rated current:	10 A
	Rated voltage:	36 V DC
	Rated impulse voltage:	250 V/60 s

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
