The switches for production, from raw materials, materials, finished products to shipment, are inspected layer by layer, with reliable quality.

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

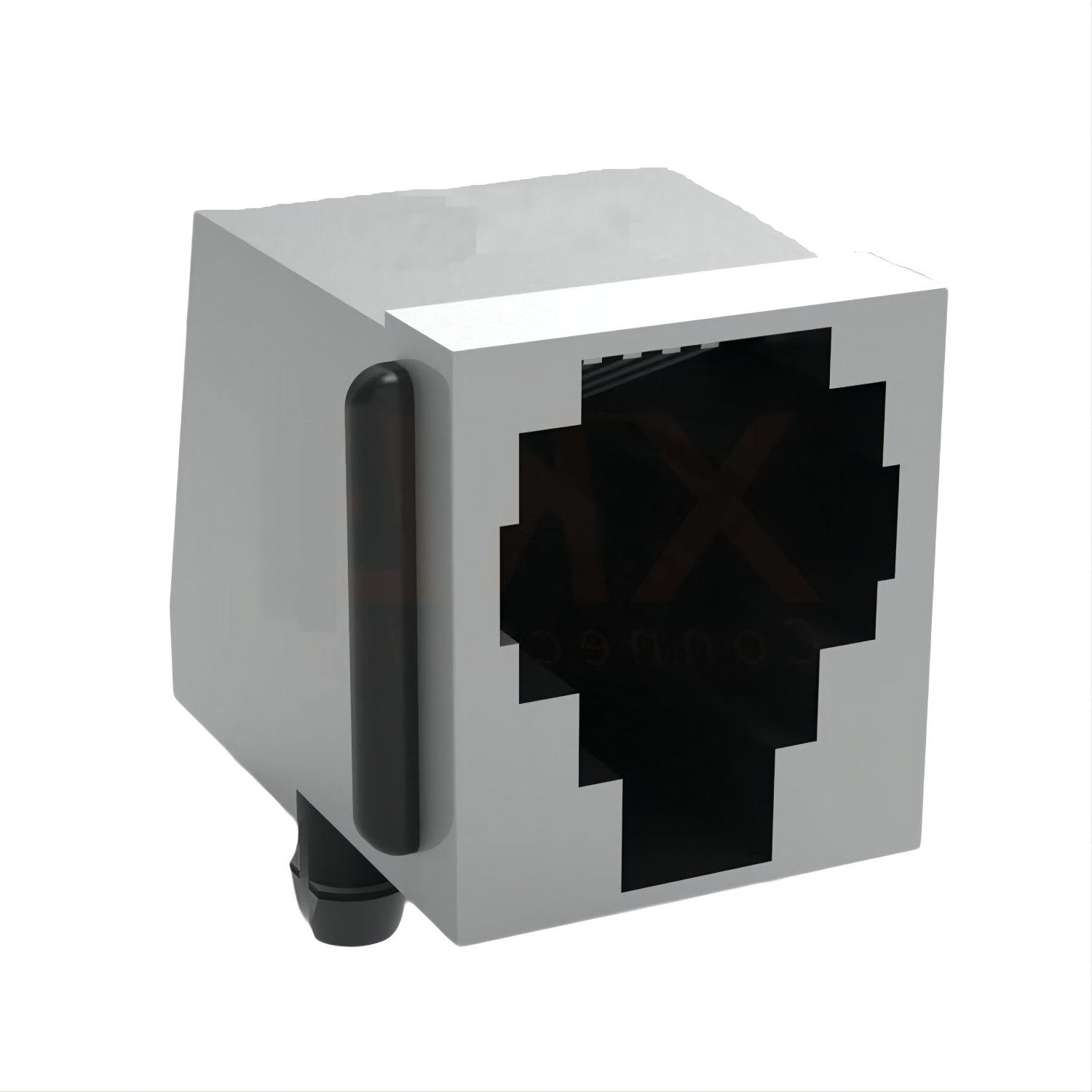

XB-X36AHIWA1DB1006 3D Drawings		RJ12 connector, single layer without shield (full plastic), without	44177	normal	1-2 weeks	0.000		0	10000	Compatible Xibang	Consult

产品材质	胶芯材料:	PBT, UL94V-0, black
	端子材料:	Phosphor Bronze C5210
	屏蔽层材料:	无

产品类型特性	连接器种类:	母端
	方向:	直角
	耐电压:	1000 VAC 0.5mA
	绝缘电阻:	500 MΩ min.
	接触电阻:	40 mΩ Max.
	端口数量:	1

端接特性	端子端接类型:	弯插
	PCB端接方法:	插脚

储存环境	储存环境温度:	-40 ℃～ + 85 ℃

电气参数	芯数:	6 pins
	额定电流:	1.5A
	额定电压:	125V AC

使用环境	焊接温度（最大值）	260°C
	耐久寿命:	750 cycles
	工作温度范围:	-40°C ~ +85°C

操作/应用	千兆百兆线路:	无
	是否带灯:	无

包装特性	封装方法:	盘

母座

侧面操作

否

无

插脚型

单层

PCB接地

PCB板

16mm

20.6mm

RJ12

UL/CUL:E523734
