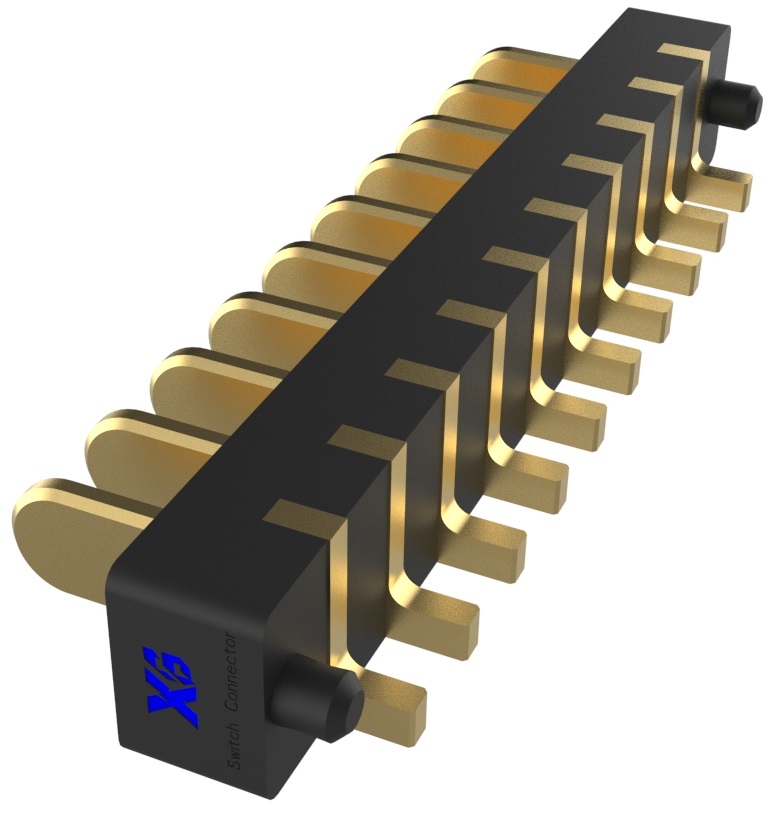

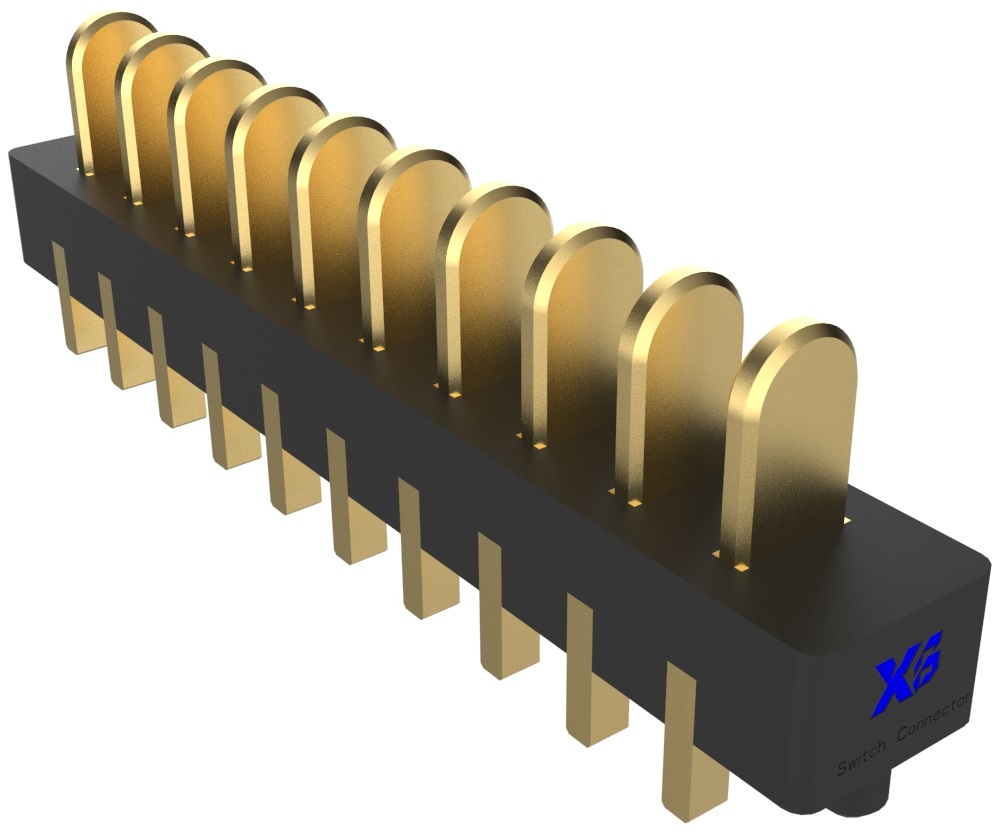

▍Xibang material number：XB-D01N-N-10P

Product name: Blade battery, male socket spacing 3.0MM, rated current: 12A 15A, rated voltage: 12V 60V DC, plastic: PA10T

Metal material: brass plated with gold. Service life: 5000 times. Welding method: welding wire/welding plate. Voltage resistance: 500V

Contact resistance: 30M Ω Insulation resistance: 100M Ω PIN position: 2P-12PIN product meets: ROHS

3D files and drawings

3D filesXB-D01N-A-10P-R1 Specifications XB3.0
3D filesXB-D01N-A-9P-R1 Specifications XB3.0

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-D01N-N-10P 3D Drawings		33.5 * 5 * 3.5mm 10P male/blade connector/blade socket/high-power blade battery holder/blade battery connector/battery socket spacing: 3.0mm		Normal	4~7	0.5	500	30000	10000	Compatible Xibang	Consult
XB-D01N-N-10P-X 3D Drawings		33.5 * 5 * 3.5mm 10P male/blade connector/blade socket/high-power blade battery holder/blade battery connector/battery socket spacing: 3.0mm		Normal	4~7	0.5	500	30000	10000	Compatible Xibang	Consult

product name	1.Blade male battery connector	PA9T UL94V-0
	2. Cover	Copper Gold-plated C5191
	3. The foundation	PA9T UL94V-0
	4. Contact the film	bronze
	5. Terminal	Brass gold plated

	Use the temperature range	-40℃～105℃
	Maximum rating (resistance load)	15A 60V DC
	Minimum rating (resistance load)	12A 12V DC

Electric performance	withstand voltage	500V AC for 1 minute
	insulation resistance	100MΩ 500V DC
	Contact resistance (initial / post-life)	30mΩ max./100mΩ max.

lasting quality	No load life	5000 Times
	Load life (maximum rated load)	5000 Times

Environmental resistance	Cold resistance	-20℃ 500h
	resistance to effect of heat	85℃ 500h
	Moisture resistance	60℃, 90 to 95%RH 500h

welding condition
When immersed in welding	preheat temperature	100℃
	Preheat temperature time	60s max.
	welding temperature	260±5℃
	Welding impregnation time	3±1s

Hand welding	welding temperature	350±10℃
	weld period	4s max.

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version
