▍Xibang material number：XB-X2521HF-02G-N0

Product Name: Line to Line Connector Rated Current: 3A DC/AC Rated Voltage: 250V DC/AC Withstand Voltage: 1500V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω Insertion and extraction force: 1N-1.2N/PIN * PIN installation method: board end/line end

Working temperature: -35 ℃~+85 ℃ Terminal material: Phosphor copper adhesive shell material: UL 94V-2/UL94V-0 Product compliance: ROHS

3D files and drawings

3D filesXB-X2521HF-02G-N0 Specifications XB-X2521-
3D filesXB-X2521HF-02G-N0 Specifications XB-X2521-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

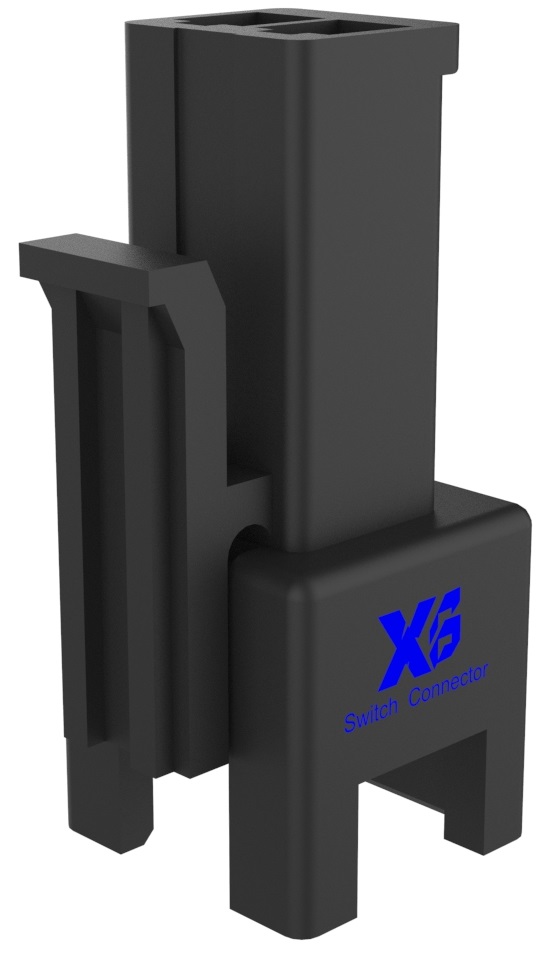

XB-X2521HF-02G-N0 3D Drawings		2.5 * 8 * 18.5mm Line to Line Connector Spacing 2.5mm/Line to Line 2PIN Bits/Line to Line Female Seat Spacing 2.5mm/Line to Line Male Seat 2Pin/Line to Line Connector/Line to Line Board Socket/Line to Line Jack/Line to Line Board Connector		Normal	1-2 weeks	0.3g	1000 PCS/disc	5000 PCS	10000	Compatible Xibang	Consult
XB-X2521HF-02G-N0-X 3D Drawings		2.5 * 8 * 18.5mm Line to Line Connector Spacing 2.5mm/Line to Line 2PIN Bits/Line to Line Female Seat Spacing 2.5mm/Line to Line Male Seat 2Pin/Line to Line Connector/Line to Line Board Socket/Line to Line Jack/Line to Line Board Connector		Normal	1-2 weeks	0.3g	1000 PCS/disc	5000 PCS	10000	Compatible Xibang	Consult

Product material	1.Wire to Wire Connector	texture of wood
	2. Terminal	Phosphor copper (tin plating: 70μ nickel: over 30μ)
	3. Rubber shell	UL 94V-2/UL94V-0

Product type characteristics	rated current	3A AC/DC
	rated voltage	250V AC/DC
	operating temperature range	-40℃～+105℃
	contact resistance	10mΩ≥20mΩ
	insulance	100 mΩ
	voltage withstand	1500V AC

Environmental resistance	Cold resistance	-25±2℃ 96/h
	resistance to effect of heat	85 ± 2 ℃ 96/h
	Moisture resistance	40 2℃ relative humidity 90~95% 96/h

Mechanical accessories	Installation mode	Board end/wire end
	Connector installation type:	Plate installation

Packaging characteristics	Packaging method:	bagged

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
